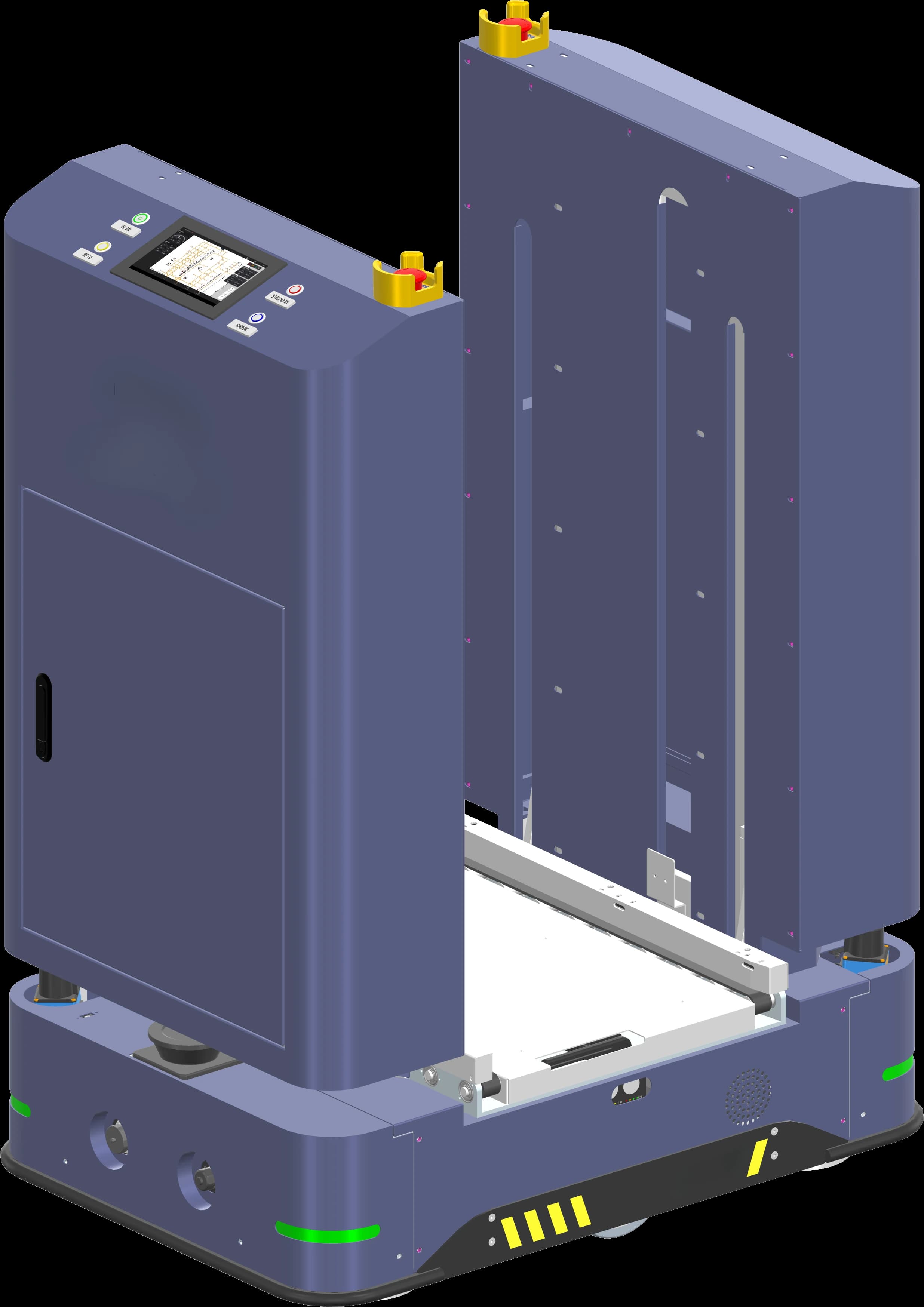

BotOnly AMR-SM-103 Dedicated SMT AMR
BotOnly AMR-SM-103 Dedicated SMT AMR is designed for SMT line-side material delivery and empty-carrier return. Rated payload 50 kg, travel speed 1.0 m/s.
- Model
- AMR-SM-103
- Product type
- Dedicated SMT AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 50 kg
- Dimensions
- 960 × 560 × 1,420 mm
- Maximum speed
- 1.0 m/s
- Runtime
- 8 h
- Turning diameter/radius
- 1,112 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- 960 × 560 × 1,420 mm
- Rated payload
- 50 kg
- Turning diameter
- 1112
- Aisle width
- 960/1920
- Operating time — unloaded
- 10
- Operating time — full load
- 8
- Vehicle weight
- 250 kg
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Charging time
- 2h
- Maximum speed
- 1.0 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- SMT line-side delivery
- PCB carrier transport
- Empty-carrier return
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
