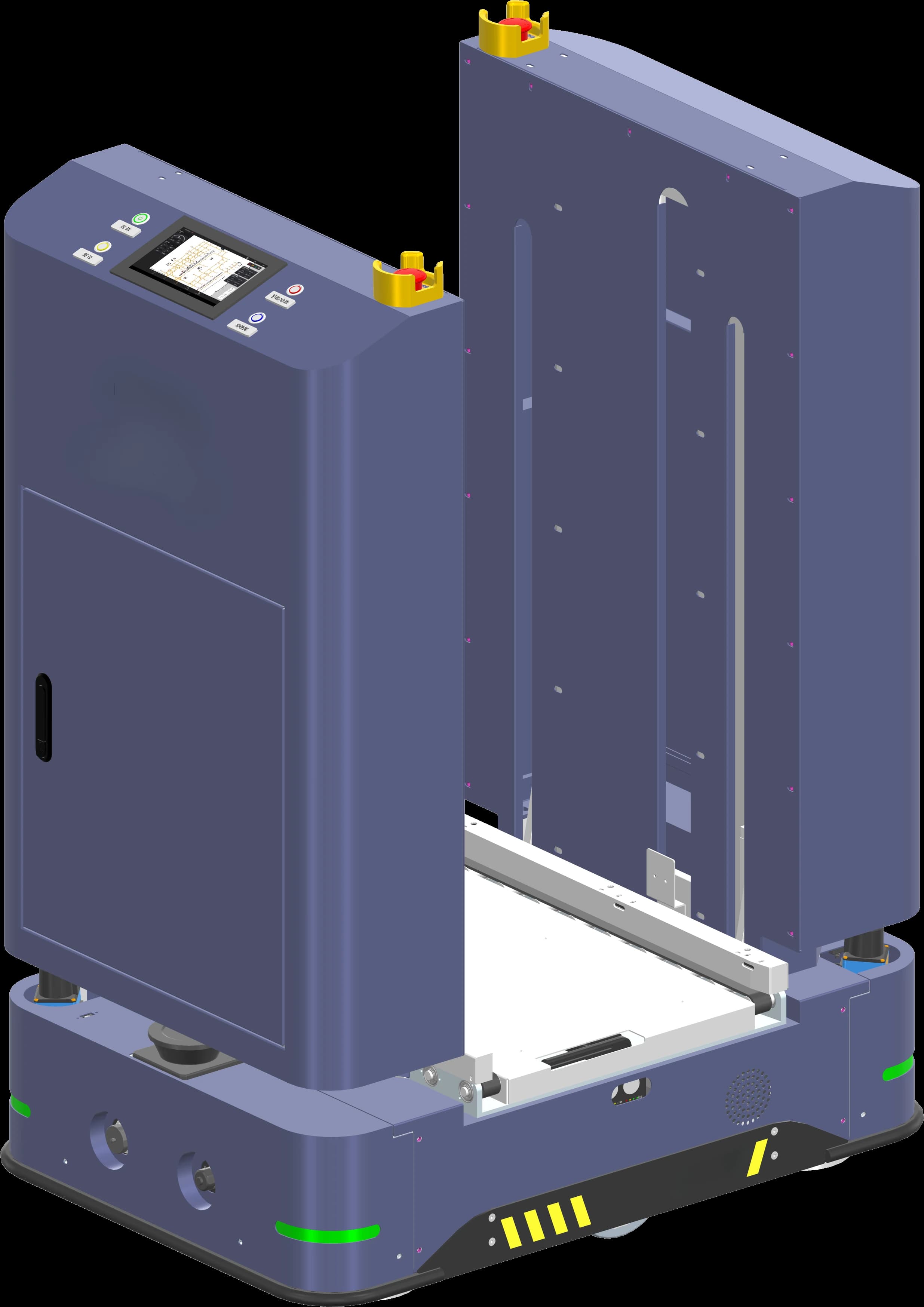

BotOnly AMR-SM-101 SMT Material-Handling AMR
BotOnly AMR-SM-101 SMT Material-Handling AMR is designed for SMT line-side material delivery and empty-carrier return. Rated payload 50 kg, travel speed 0.8 m/s, lift height 865 ± 5 mm. Navigation is based on 3D Laser SLAM.
- Model
- AMR-SM-101
- Product type
- SMT Material-Handling AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 50 kg
- Dimensions
- 1,290 × 600 × 1,480 mm
- Lift height
- 865 ± 5 mm
- Maximum speed
- 0.8 m/s
- Navigation
- 3D Laser SLAM
- Drive mode
- Dual steering wheel
- Runtime
- 4~6 h
- Battery
- 48V30Ah
- Turning diameter/radius
- 1,370 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- 1,290 × 600 × 1,480 mm
- Rated payload
- 50 kg
- Lift height
- 865 ± 5 mm
- Vehicle weight
- 350 ± 5%
- Navigation
- 3D Laser SLAM
- Drive mode
- Dual steering wheel
- Operating method
- Forward+reverse+in-place rotation+lateral movement
- Turning diameter
- 1,370 mm
- Gradeability
- 3%
- Obstacle crossing
- 5 mm
- Gap crossing
- 10 mm
- Aisle width
- 1,440 mm
- Positioning accuracy
- ± 10/± 5 mm
- Angular accuracy
- ± 1°
- Maximum speed
- 0.8 m/s
- Battery
- 48V30Ah
- Standby time
- 8~10 h
- Operating time — unloaded
- 6~8 h
- Operating time — full load
- 4~6 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 3
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- 2
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3 mm
- Operating temperature / humidity
- 10%～90%
Description & advantages
An SMT material-flow platform for automated loading, unloading and carrier transfer between production lines and buffer areas.
- MES/WMS integration for work-order and material-traceability data
- Multi-robot coordination between line-side stations and buffers
- Marker-free deployment with autonomous routing and obstacle avoidance
Key features
Laser SLAM navigation with automated charging
- 3D laser SLAM navigation
- Dual steering wheel drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- SMT line-side delivery
- PCB carrier transport
- Empty-carrier return
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
