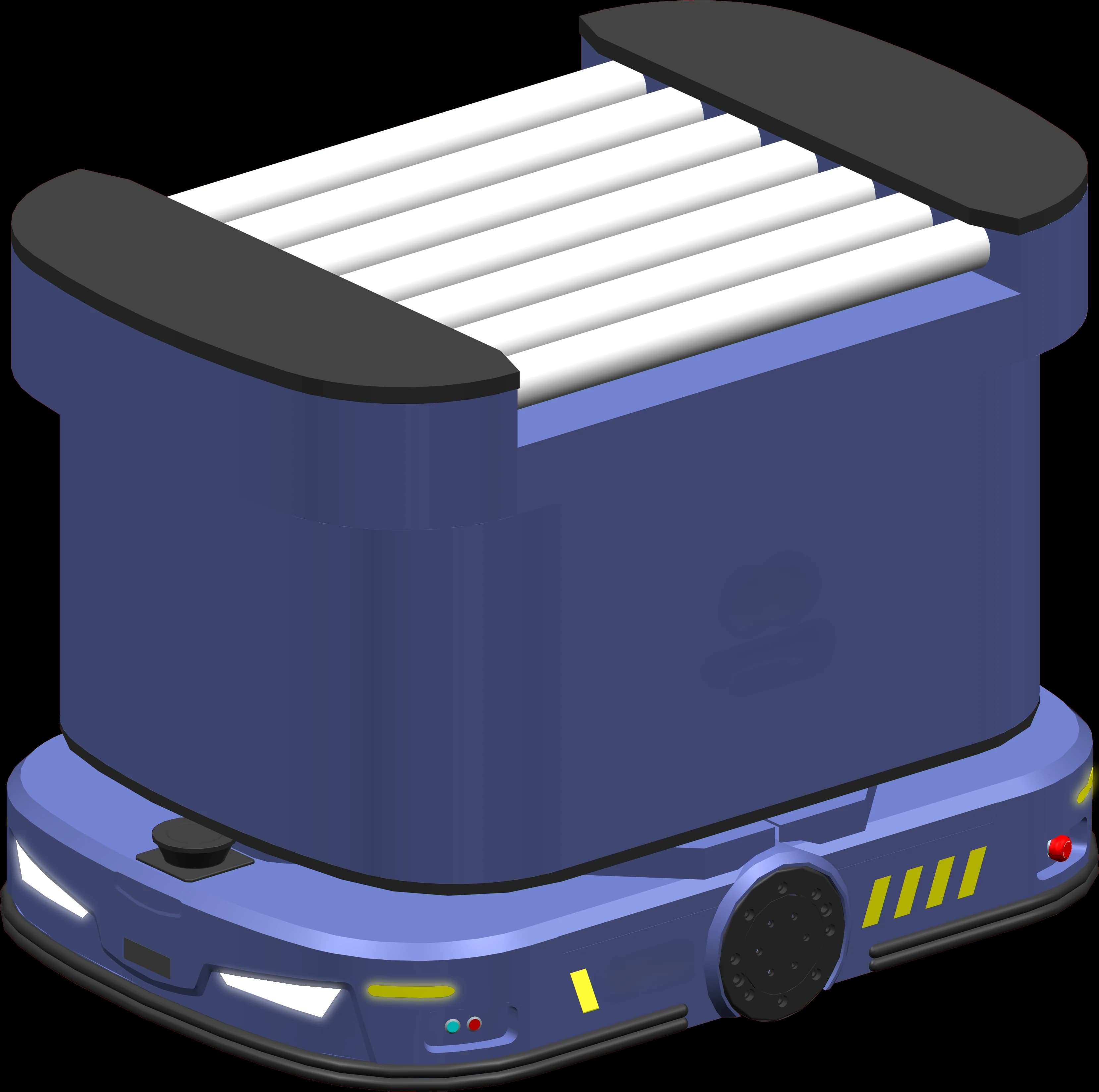

BotOnly AMR-RL-107 Roller Conveyor AMR
BotOnly AMR-RL-107 Roller Conveyor AMR is designed for automated transfer between conveyors, production stations, and warehouse handoff points. The current source package lists a verified payload of 500 kg, travel speed of 1.5 m/s.
- Model
- AMR-RL-107
- Product type
- Roller Conveyor AMR
- Estimated price range
- US$25,000–50,000
At a glance
Key Specifications
- Rated payload
- 500 kg
- Dimensions
- 1,160 × 820 × (300~1,000) mm
- Maximum speed
- 1.5 m/s
- Runtime
- 6 h
- Turning diameter/radius
- 1,230 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions
- 1,160 × 820 × (300~1,000) mm
- Rated payload
- 500 kg
- Turning diameter
- 1230
- Aisle width
- 3060
- Operating time — unloaded
- 10
- Operating time — full load
- 6
- Vehicle weight
- 282 kg
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Charging time
- 2h
- Maximum speed
- 1.5 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Production-line transfer
- Conveyor and workstation interface
- Warehouse and distribution handling
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
