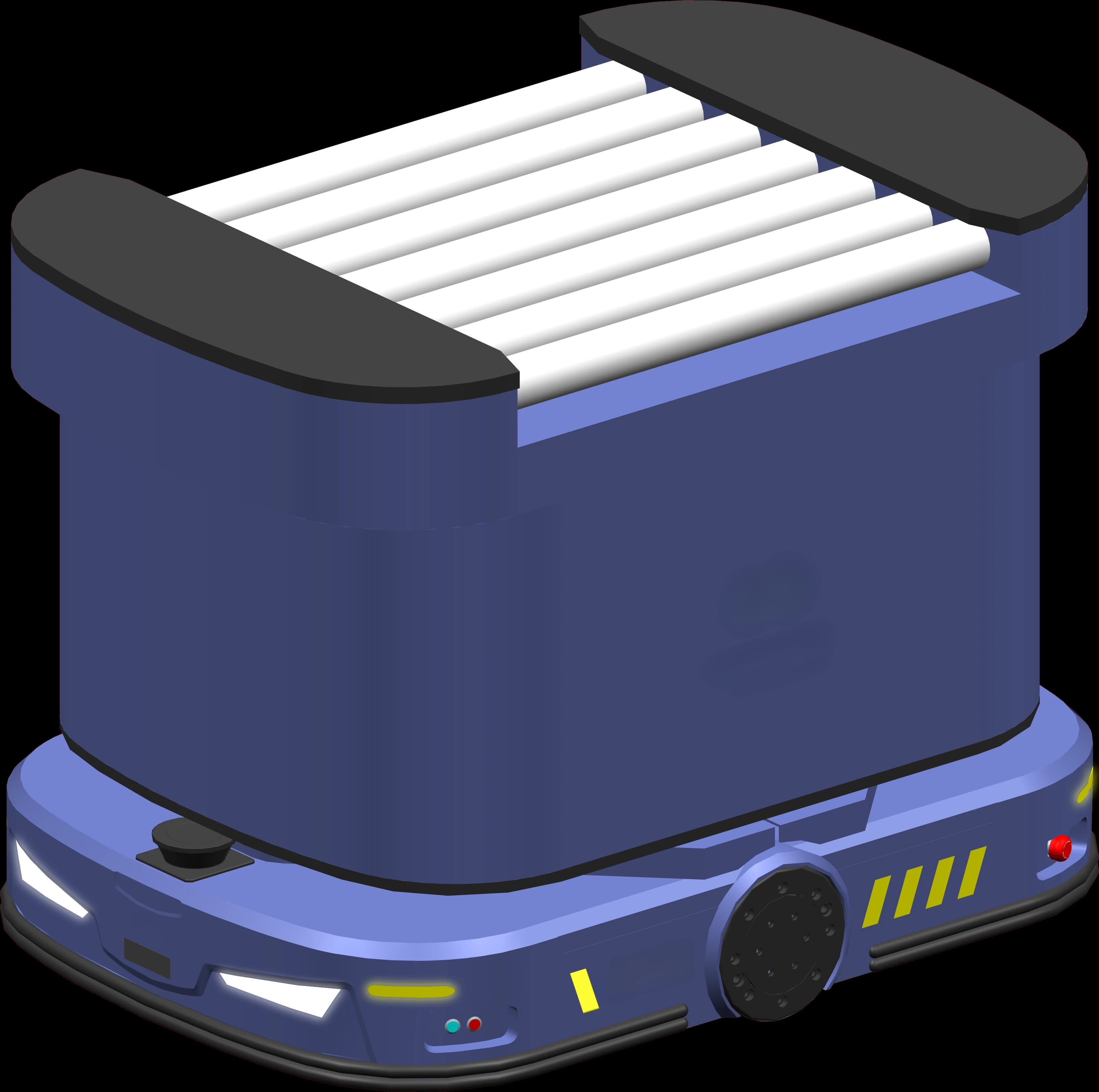

BotOnly AMR-RL-101 Roller Conveyor AMR
BotOnly AMR-RL-101 Roller Conveyor AMR is designed for automated transfer between conveyors, production stations, and warehouse handoff points. The current source package lists a verified payload of 50 kg, travel speed of 1.5 m/s. Navigation is based on Laser SLAM / QR code.
- Model
- AMR-RL-101
- Product type
- Roller Conveyor AMR
- Estimated price range
- US$15,000–35,000
At a glance
Key Specifications
- Rated payload
- 50 kg
- Dimensions
- 950 × 650 × 300–1,000 mm
- Maximum speed
- 1.5 m/s
- Navigation
- Laser SLAM / QR code
- Drive mode
- Differential
- Runtime
- 6~8 h
- Battery
- 48 V / 15 Ah
- Turning diameter/radius
- 1,151-2,915 mm
- Lateral movement
- No
Technical data
Detailed Specifications
- Dimensions
- 950 × 650 × 300–1,000 mm
- Rated payload
- 50 kg
- Vehicle weight
- 230 kg ± 5%
- Navigation
- Laser SLAM / QR code
- Drive mode
- Differential
- Battery
- 48 V / 15 Ah
- Lateral movement
- No
- Travel direction
- Forward+reverse+in-place rotation+lateral movement
- Turning diameter
- 1,151-2,915 mm
- Gradeability
- 5-10%
- Obstacle crossing
- 5-10 mm
- Gap crossing
- 30-50 mm
- Aisle width
- 1,050-1,900 mm
- Positioning accuracy
- ± 10/± 5/± 2 mm
- Angular accuracy
- ± 1°
- Standby time
- 24 h
- Operating time — unloaded
- 8~10 h
- Operating time — full load
- 6~8 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 2/3
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- √
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3 mm
- Operating temperature / humidity
- 10%～90%
Description & advantages
The source describes a configurable mobile-robot platform with standard mechanical, I/O, CAN and power interfaces for adding transfer or handling modules.
- Rapid SLAM deployment without floor markers
- Standard interfaces for third-party systems and top modules
- Real-time self-diagnostics and centralized fleet dispatch
Key features
Flexible navigation with automated charging
- Laser SLAM / QR code navigation
- Differential drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Production-line transfer
- Conveyor and workstation interface
- Warehouse and distribution handling
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
