BotOnly

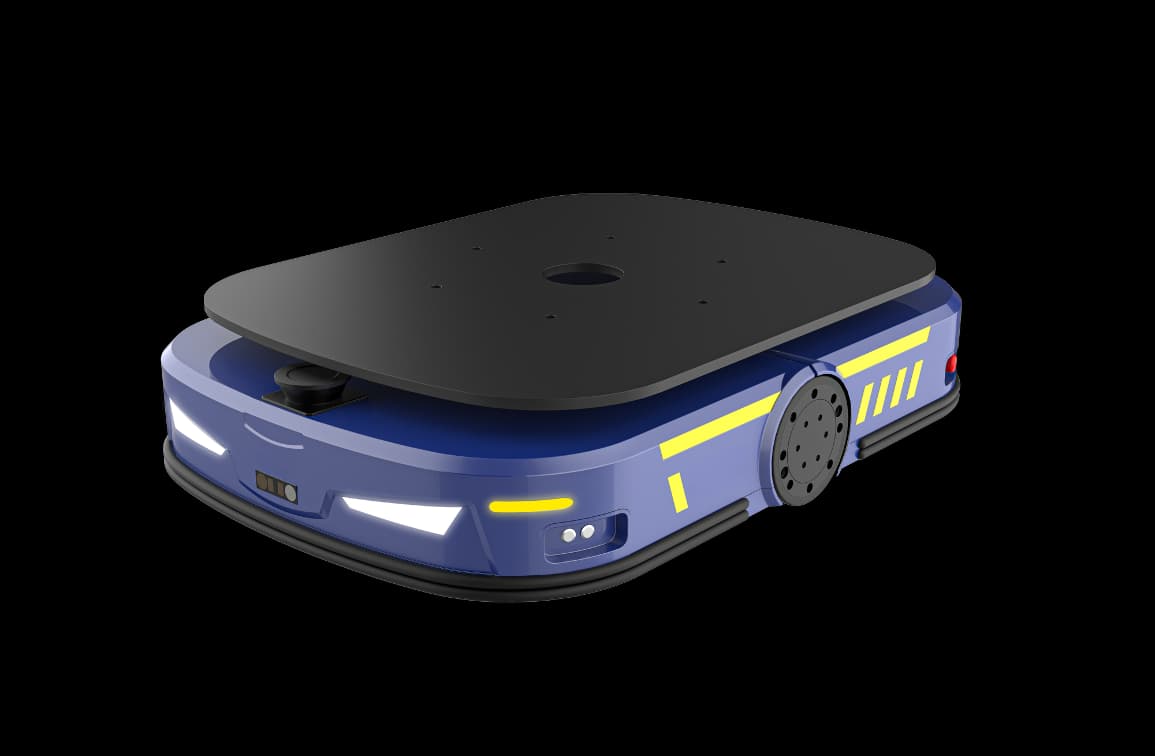

BotOnly AMR-LR-107 Lifting and Rotating AMR
BotOnly AMR-LR-107 Lifting and Rotating AMR is designed for autonomous movement of pallets, racks, and work-in-process materials. Rated payload 1,000 kg, travel speed 1.5 m/s.
- Model
- AMR-LR-107
- Product type
- Lifting and Rotating AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,000 kg
- Dimensions
- 1,160 × 820 × 250 mm
- Maximum speed
- 1.5 m/s
- Runtime
- 8 h
- Turning diameter/radius
- 1,230 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- 1,160 × 820 × 250 mm
- Rated payload
- 1,000 kg
- Turning diameter
- 1230
- Aisle width
- 1630
- Operating time — unloaded
- 10
- Operating time — full load
- 8
- Vehicle weight
- 192 kg
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Charging time
- 2h
- Maximum speed
- 1.5 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Warehouse material transport
- Production-line replenishment
- Work-in-process movement
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
