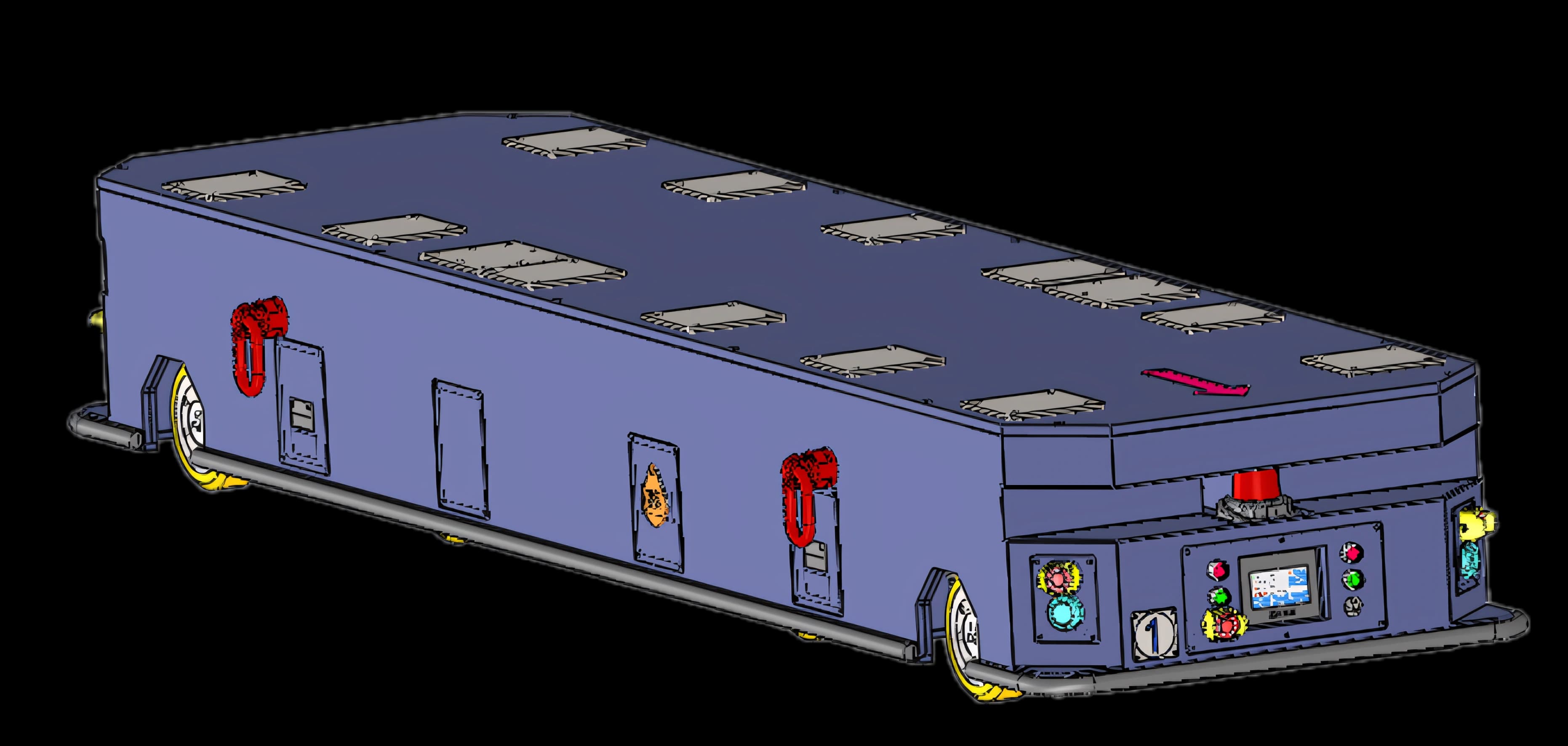

BotOnly AMR-HD-102 Heavy-Duty Top-Load AMR
BotOnly AMR-HD-102 Heavy-Duty Top-Load AMR is designed for high-payload material movement in heavy manufacturing environments. Rated payload 15,000 kg, travel speed 0.5 m/s~0.6 m/s.
- Model
- AMR-HD-102
- Product type
- Heavy-Duty Top-Load AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 15,000 kg
- Dimensions
- 3,200 × 780 × 450 mm
- Maximum speed
- 0.5 m/s~0.6 m/s
- Runtime
- 5~6 h
- Turning diameter/radius
- 3,690 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 15,000 kg
- Dimensions
- 3,200 × 780 × 450 mm
- Turning diameter
- 3690
- Aisle width
- 1180
- Operating time — unloaded
- 8
- Operating time — full load
- 5~6
- Vehicle weight
- Differential Drive Wheels + Powered Wheels（Differential drive wheels+powered wheels）
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Charging time
- 2h
- Maximum speed
- 0.5 m/s~0.6 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Automotive manufacturing
- Machinery and metal processing
- Oversized material transport
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
