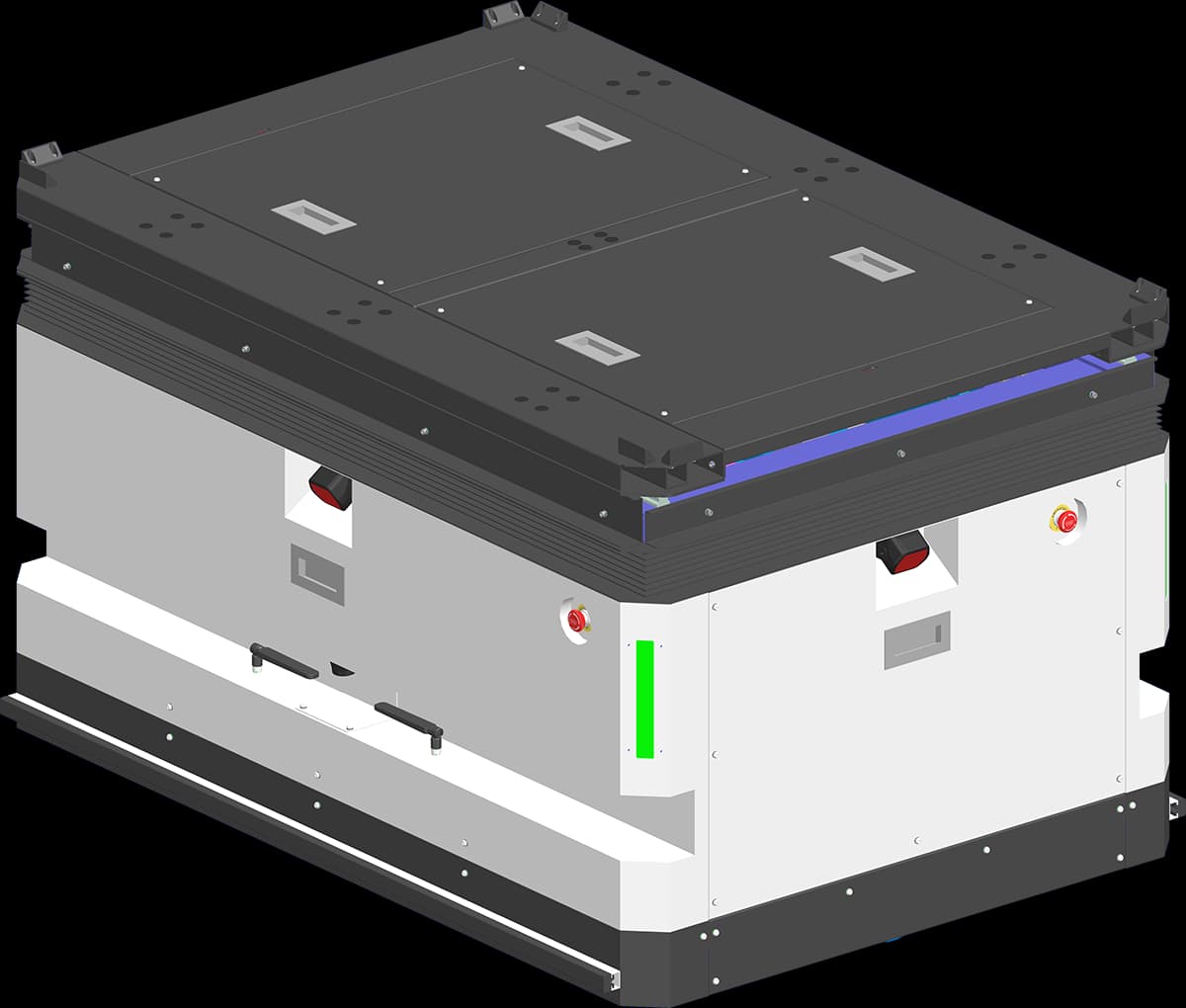

BotOnly AMR-CU-113 Heavy Lifting AMR
BotOnly AMR-CU-113 Heavy Lifting AMR is designed for high-payload material movement in heavy manufacturing environments. Rated payload 1,000 kg. Navigation is based on Laser SLAM.
- Model
- AMR-CU-113
- Product type
- Heavy Lifting AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,000 kg
- Navigation
- Laser SLAM
- Drive mode
- Differential drive
- Runtime
- ≥8H
- Turning diameter/radius
- 910 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- L1,450*W1,050*H850（unit: mm，including safety bumper）
- Rated payload
- 1,000 kg
- Navigation
- Laser SLAM
- Battery
- Lithium battery
- Charging method
- Manual / automatic / battery swap
- Charging time
- ≤2H
- Safety sensing
- front of vehicle、rear of vehicle180°
- Drive mode
- Differential drive
- Maximum speed
- 0~1.2 m/s
- Turning radius
- 910 mm
- Obstacle crossing
- 5 mm
- Gradeability
- 3°/ 5%
- Ground clearance
- 20 mm
- Aisle width
- 2,100 mm（unloaded）
- Docking accuracy
- ± 5 mm
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Workflow integration support
Key features
Laser SLAM navigation with flexible charging
- Laser SLAM navigation
- Differential drive architecture
- Manual, automatic and battery-swap charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Automotive manufacturing
- Machinery and metal processing
- Oversized material transport
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
