BotOnly

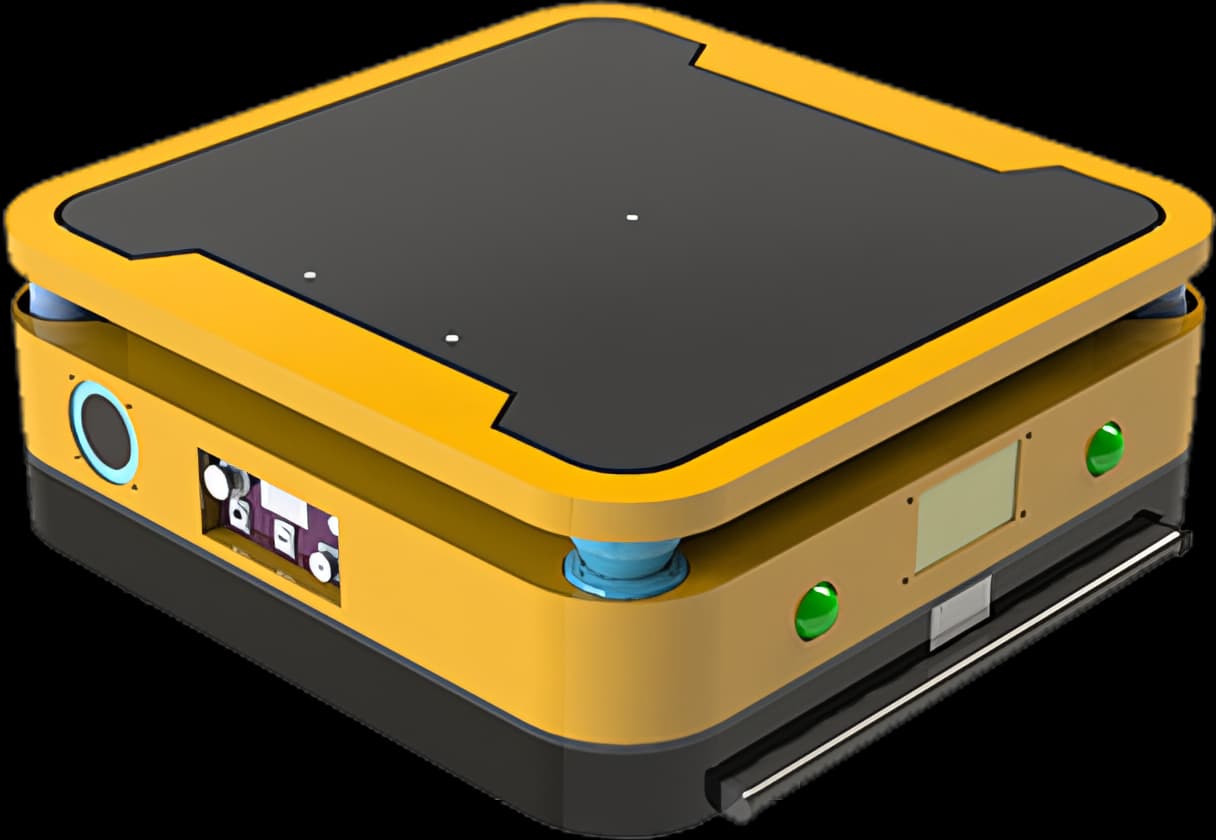

BotOnly AMR-CU-112 Lifting AMR
BotOnly AMR-CU-112 Lifting AMR is designed for autonomous movement of pallets, racks, and work-in-process materials. Rated payload 500 kg. Navigation is based on Laser SLAM.
- Model
- AMR-CU-112
- Product type
- Lifting AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 500 kg
- Navigation
- Laser SLAM
- Drive mode
- Dual steering wheel drive
- Runtime
- ≥8H
- Turning diameter/radius
- 500 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- L939*W629*H580（unit: mm，including safety bumper）
- Laser scanner layout
- Diagonal Three laser scanners
- Rated payload
- 500 kg
- Navigation
- Laser SLAM
- Battery
- Lithium battery
- Charging method
- Manual / automatic / battery swap
- Charging time
- ≤2H
- Safety sensing
- vehicle coverage 360°
- Drive mode
- Dual steering wheel drive
- Maximum speed
- 0~1 m/s
- Turning radius
- 500 mm
- Obstacle crossing
- 5 mm
- Gradeability
- 3°/ 5%
- Ground clearance
- 20 mm
- Aisle width
- 1,000 mm（unloaded）
- Docking accuracy
- ± 10 mm
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Workflow integration support
Key features
Laser SLAM navigation with dual-steering control
- Laser SLAM navigation
- Dual steering wheel drive architecture
- Manual, automatic and battery-swap charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Warehouse material transport
- Production-line replenishment
- Work-in-process movement
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
