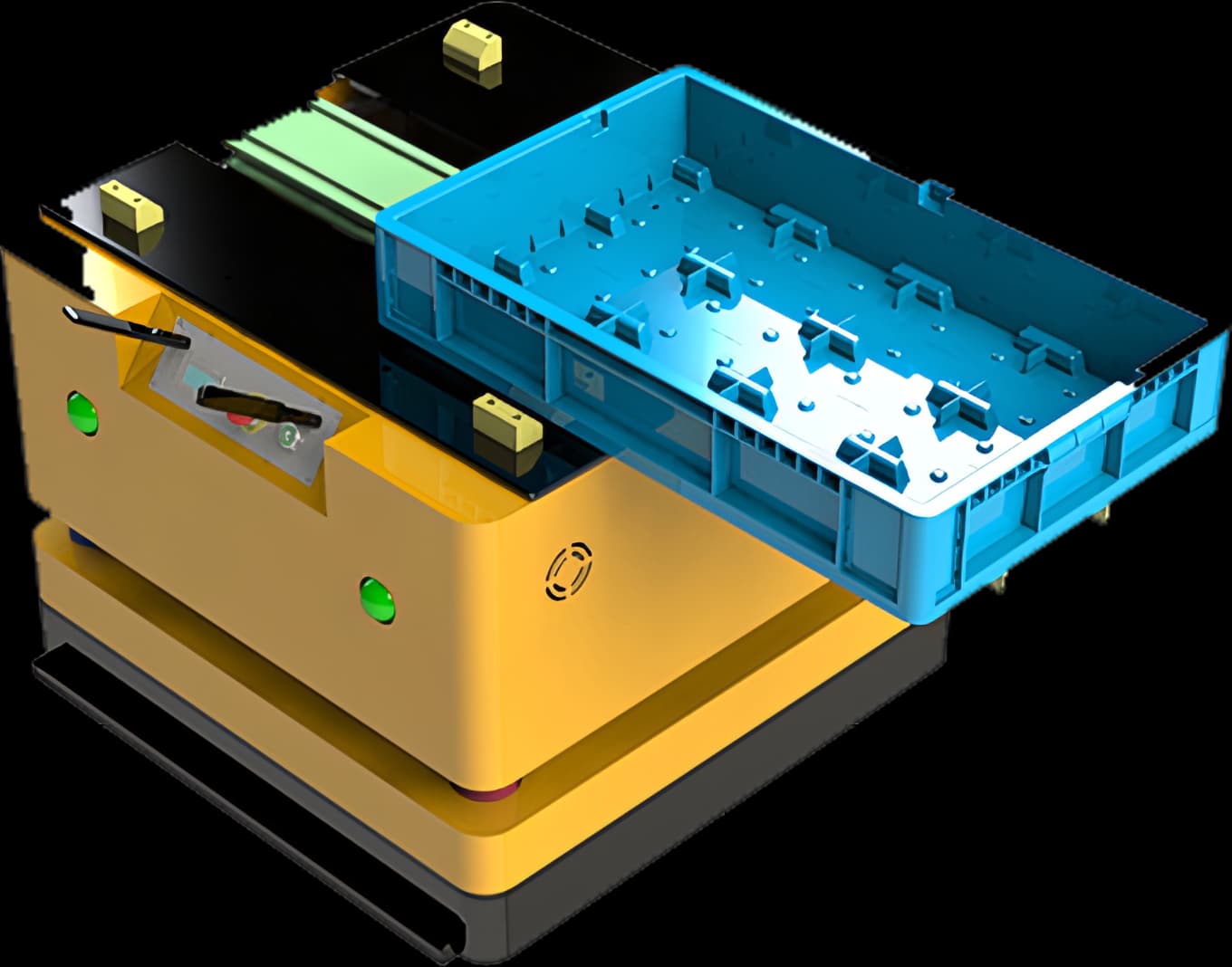

BotOnly AMR-CU-108 Side-Transfer Telescopic-Fork AMR
BotOnly AMR-CU-108 Side-Transfer Telescopic-Fork AMR is designed for autonomous movement of pallets, racks, and work-in-process materials. Rated payload 100 kg. Navigation is based on Laser SLAM.
- Model
- AMR-CU-108
- Product type
- Side-Transfer Telescopic-Fork AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 100 kg
- Navigation
- Laser SLAM
- Drive mode
- Differential drive
- Runtime
- ≥8H
- Turning diameter/radius
- 600 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- L800*W750*H610（unit: mm，including safety bumper）
- Rated payload
- 100 kg
- Navigation
- Laser SLAM
- Battery
- Lithium battery
- Charging method
- Manual / automatic / battery swap
- Charging time
- ≤2H
- Safety sensing
- 360°
- Drive mode
- Differential drive
- Maximum speed
- 0~1.2 m/s
- Turning radius
- 600
- Fork extension stroke
- 850 mm
- Obstacle crossing
- 5 mm
- Gradeability
- 3°/ 5%
- Ground clearance
- 20 mm
- Aisle width
- 1,100 mm（unloaded）
- Docking accuracy
- ± 5 mm
Description & advantages
A telescopic-fork mobile platform for automated pickup and delivery where the load must be transferred from the side or front.
- Telescopic transfer reduces the need for a separate fixed handoff device
- Supports automated rack, line-side and workstation transfer workflows
Key features
Laser SLAM navigation with flexible charging
- Laser SLAM navigation
- Differential drive architecture
- Manual, automatic and battery-swap charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Warehouse material transport
- Production-line replenishment
- Work-in-process movement
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
