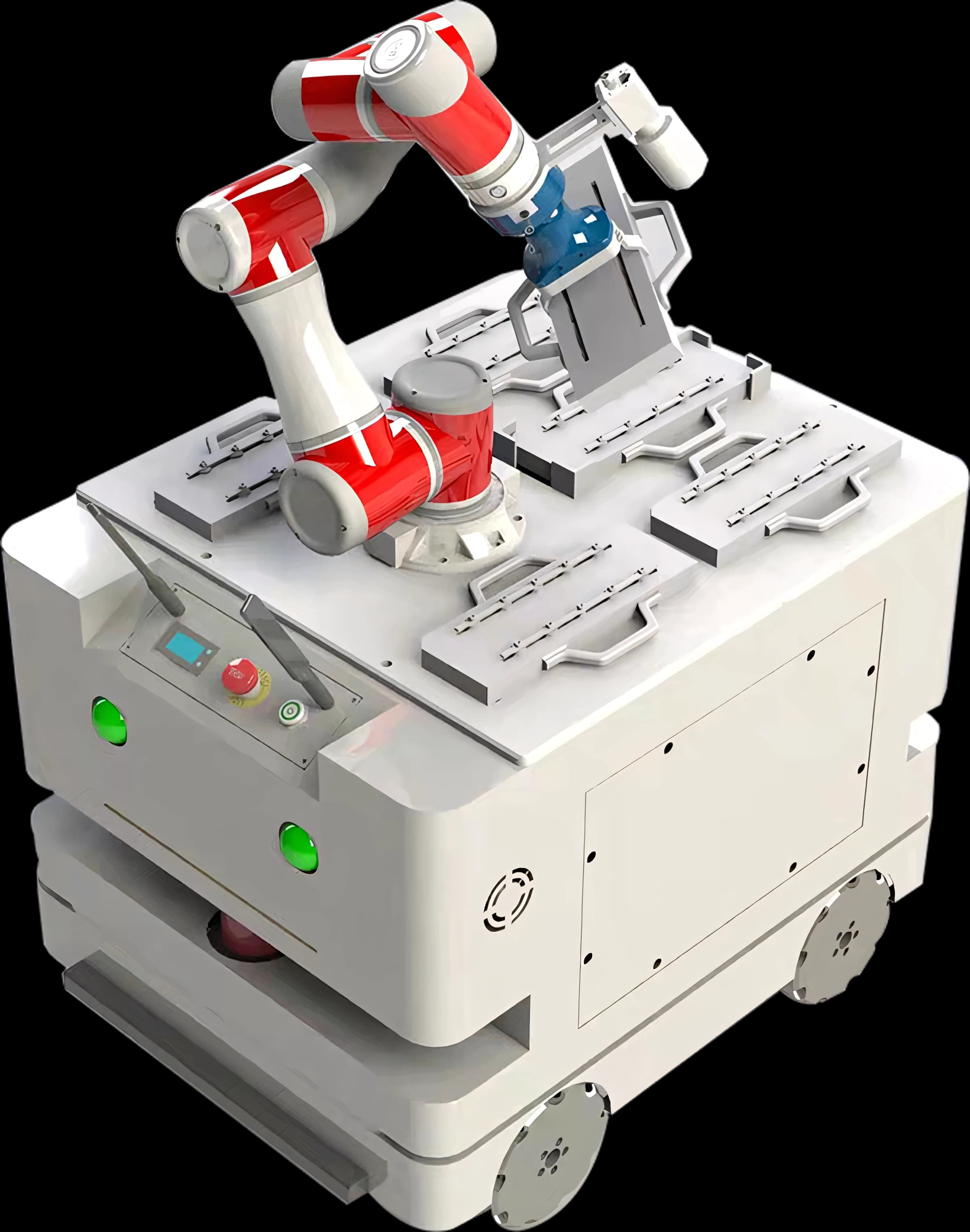

BotOnly AMR-CU-107 Omnidirectional Composite AMR
BotOnly AMR-CU-107 Omnidirectional Composite AMR is designed for autonomous movement of pallets, racks, and work-in-process materials. Rated payload 200 kg. Navigation is based on Laser SLAM.
- Model
- AMR-CU-107
- Product type
- Omnidirectional Composite AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 200 kg
- Navigation
- Laser SLAM
- Drive mode
- Mecanum wheel
- Runtime
- 6~8H
- Turning diameter/radius
- 500 mm
- Positioning accuracy
- ± 5 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- L800*W600*H585（mm）（robot arm excluded）
- Rated payload
- 200 kg
- Vehicle weight
- ≤300 kg
- Navigation
- Laser SLAM
- Battery
- Lithium battery
- Charging method
- Manual / automatic / battery swap
- Charging time
- ≤2H
- Safety sensing
- 360°
- Drive mode
- Mecanum wheel
- Maximum speed
- 0~1 m/s
- Turning radius
- 500 mm
- Obstacle crossing
- 5 mm
- Gap crossing
- 30 mm
- Ground clearance
- 20 mm
- Aisle width
- 800 mm
- Positioning accuracy
- ± 5 mm
Description & advantages
A mobile manipulation platform that combines autonomous travel with a robot arm for machine tending and material handling.
- Direct handoff with CNC and other automated equipment
- Mobile and arm positioning integrated in one workflow
- Configurable safety zones for operation in complex production areas
Key features
Omnidirectional drive with automated charging
- Laser SLAM navigation
- Mecanum wheel drive architecture
- Manual, automatic and battery-swap charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Warehouse material transport
- Production-line replenishment
- Work-in-process movement
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
