BotOnly AMR-CU-106 Differential-Drive Composite AMR
BotOnly AMR-CU-106 Differential-Drive Composite AMR is designed for autonomous movement of pallets, racks, and work-in-process materials. The current source package lists a verified payload of 200 kg. Navigation is based on Laser SLAM.
- Model
- AMR-CU-106
- Product type
- Differential-Drive Composite AMR
- Estimated price range
- US$15,000–35,000
At a glance
Key Specifications
- Rated payload
- 200 kg
- Navigation
- Laser SLAM
- Drive mode
- Mecanum wheel
- Runtime
- 6~8H
- Turning diameter/radius
- 500 mm
- Positioning accuracy
- ± 5 mm
Technical data
Detailed Specifications
- Dimensions
- L938.5*W568.5*H750（mm）（robot arm excluded）
- Rated payload
- 200 kg
- Vehicle weight
- ≤300 kg
- Navigation
- Laser SLAM
- Battery
- Lithium battery
- Charging method
- Manual / automatic / battery swap
- Charging time
- ≤2H
- Safety sensing
- 360°
- Drive mode
- Mecanum wheel
- Maximum speed
- 0~1 m/s
- Turning radius
- 500 mm
- Obstacle crossing
- 5 mm
- Gap crossing
- 30 mm
- Ground clearance
- 20 mm
- Aisle width
- 800 mm
- Positioning accuracy
- ± 5 mm
Description & advantages

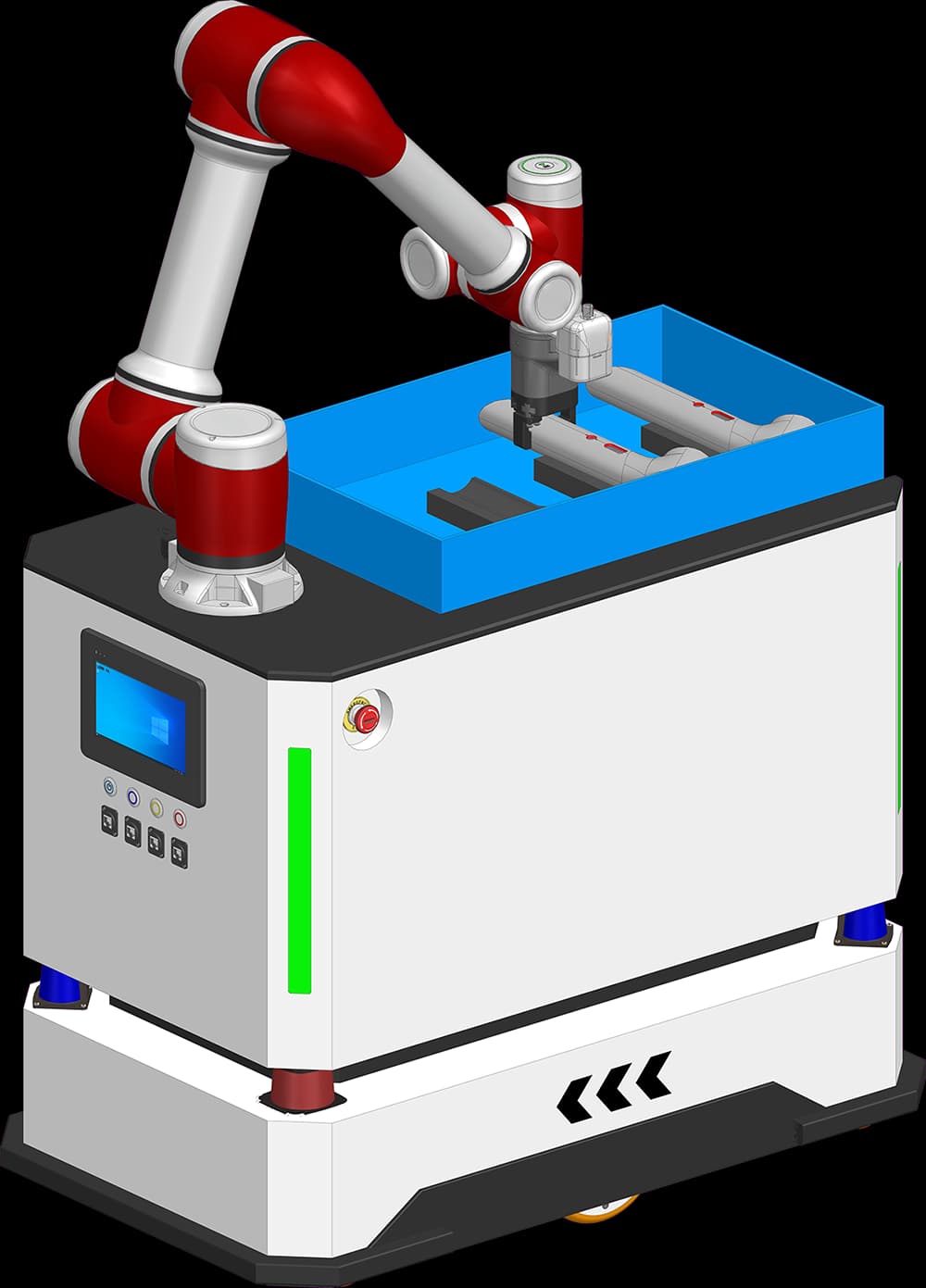

The source describes a mobile manipulation platform that combines autonomous travel with a robot arm for machine tending and material handling.
- Direct handoff with CNC and other automated equipment
- Mobile and arm positioning integrated in one workflow
- Configurable safety zones for operation in complex production areas
Key features
Omnidirectional drive with automated charging
- Laser SLAM navigation
- Mecanum wheel drive architecture
- Manual, automatic and battery-swap charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Warehouse material transport
- Production-line replenishment
- Work-in-process movement
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
