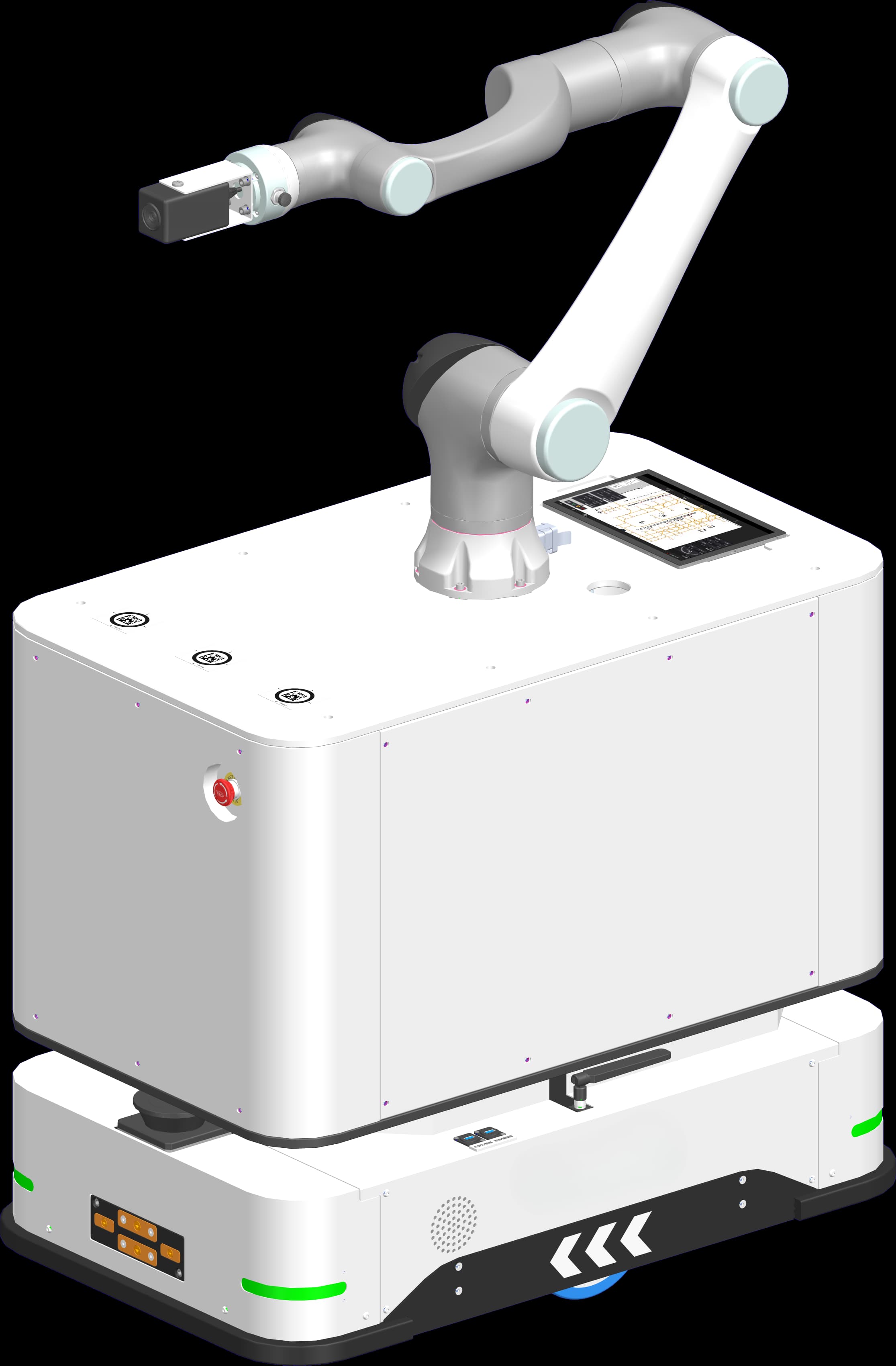

BotOnly AMR-CU-105 Composite Mobile Manipulator AMR
BotOnly AMR-CU-105 Composite Mobile Manipulator AMR is designed for machine tending, assembly support, and mobile pick-and-place. Rated payload 15 kg, travel speed 1.35 m/s. Navigation is based on Laser SLAM / reflector fusion navigation.
- Model
- AMR-CU-105
- Product type
- Composite Mobile Manipulator AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 15 kg
- Maximum speed
- 1.35 m/s
- Navigation
- Laser SLAM / reflector fusion navigation
- Drive mode
- Two-wheel Differential
- Turning diameter/radius
- 1,060 ± 20 mm
- Positioning accuracy
- ± 5 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- 950 mm×580 mm×1,000 mm
- Vehicle weight
- 220 kg ± 5%
- Rated payload
- 15 kg
- Travel direction
- Forward、reverse、turning(rotation)
- Drive mode
- Two-wheel Differential
- Navigation
- Laser SLAM / reflector fusion navigation
- Maximum speed
- 1.35 m/s
- Angular accuracy
- ± 1°
- Positioning accuracy
- ± 5 mm
- Gradeability
- 5% / 10%
- Turning diameter
- 1,060 ± 20 mm
- Battery
- LiFePO4
- Standby time
- 12h
- Charging method
- Manual / automatic
- Charging time
- ≤2.5h
- Safety sensing
- Standard
- Emergency stop
- Standard
- Audible / visual warning
- Standard
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
Description & advantages
A mobile manipulation platform that combines autonomous travel with a robot arm for machine tending and material handling.
- Direct handoff with CNC and other automated equipment
- Mobile and arm positioning integrated in one workflow
- Configurable safety zones for operation in complex production areas
Key features
Fusion navigation with automated charging
- Laser SLAM / reflector fusion navigation
- Two-wheel differential drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Machine tending
- Flexible assembly
- Mobile inspection and pick-and-place
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
