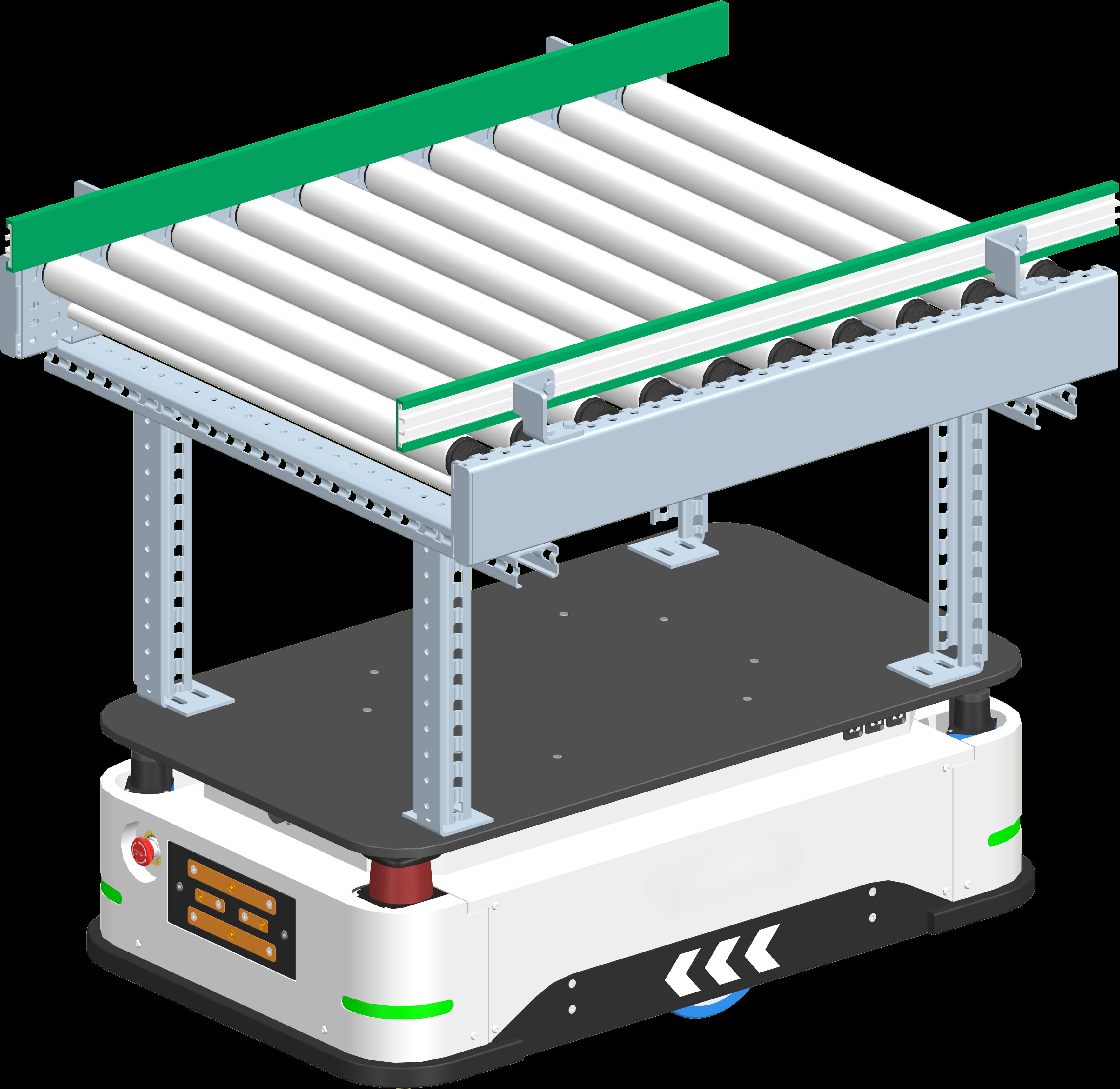

BotOnly AMR-CU-104 Roller Conveyor AMR
BotOnly AMR-CU-104 Roller Conveyor AMR is designed for automated transfer between conveyors, production stations, and warehouse handoff points. Rated payload 300 kg. Navigation is based on Laser SLAM / reflector fusion navigation.
- Model
- AMR-CU-104
- Product type
- Roller Conveyor AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 300 kg
- Navigation
- Laser SLAM / reflector fusion navigation
- Drive mode
- Two-wheel Differential
- Turning diameter/radius
- 525 mm
- Positioning accuracy
- ± 5 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- 950 mm×580 mm×780 mm
- Vehicle weight
- 230 kg ± 5%
- Rated payload
- 300 kg
- Travel direction
- Forward、reverse、turning(rotation)
- Drive mode
- Two-wheel Differential
- Navigation
- Laser SLAM / reflector fusion navigation
- Maximum speed
- 1.2 m/s
- Positioning accuracy
- ± 5 mm
- Gradeability
- 5% / 10%
- Turning radius
- 525 mm
- Aisle width
- 900 mm
- Battery
- LiFePO4
- Standby time
- 12h
- Charging method
- Manual / automatic
- Charging time
- ≤2.5h
- Safety sensing
- Standard
- Emergency stop
- Standard
- Audible / visual warning
- Standard
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Workflow integration support
Key features
Fusion navigation with automated charging
- Laser SLAM / reflector fusion navigation
- Two-wheel differential drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Production-line transfer
- Conveyor and workstation interface
- Warehouse and distribution handling
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
