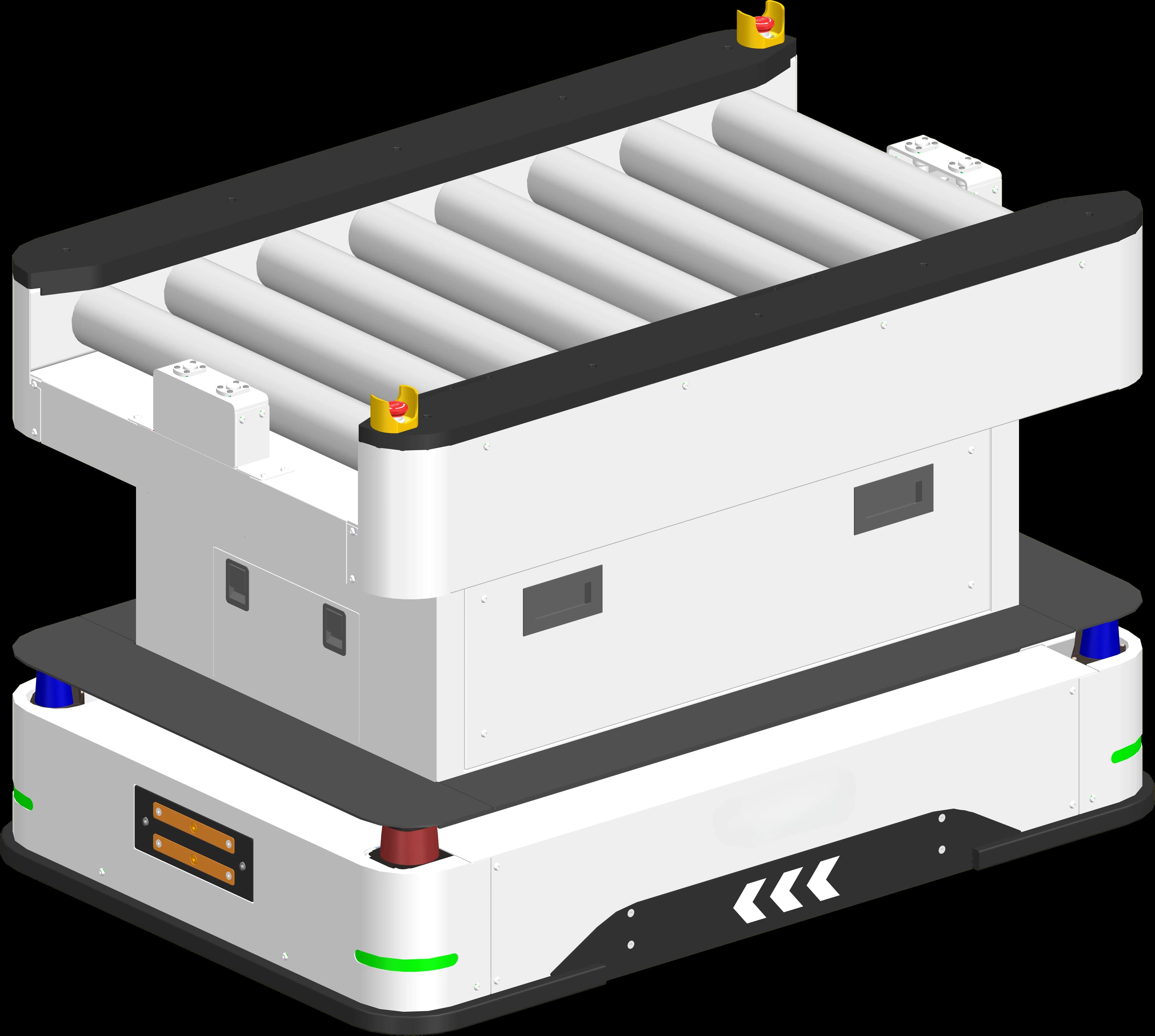

BotOnly AMR-CU-103 Roller Conveyor AMR
BotOnly AMR-CU-103 Roller Conveyor AMR is designed for automated transfer between conveyors, production stations, and warehouse handoff points. Rated payload 500 kg, travel speed 1.35 m/s. Navigation is based on Laser SLAM.
- Model
- AMR-CU-103
- Product type
- Roller Conveyor AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 500 kg
- Maximum speed
- 1.35 m/s
- Navigation
- Laser SLAM
- Drive mode
- Two-wheel Differential
- Runtime
- 6-8H
- Turning diameter/radius
- 1,080 ± 20 mm
- Positioning accuracy
- ± 5 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 500 kg
- Vehicle weight
- 320 kg ± 5%
- Navigation
- Laser SLAM
- Battery
- Lithium battery
- Standby time
- ≥12H
- Charging method
- Manual / automatic / battery swap
- Charging time
- ≤2.5H
- Operating time — full load
- 6-8H
- Operating time — unloaded
- ≥6H
- Safety sensing
- 360°
- Drive mode
- Two-wheel Differential
- Maximum speed
- 1.35 m/s
- Turning diameter
- 1,080 ± 20 mm
- Gradeability
- 3% / 6%
- Angular accuracy
- ± 1°
- Positioning accuracy
- ± 5 mm
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Workflow integration support
Key features
Laser SLAM navigation with flexible charging
- Laser SLAM navigation
- Two-wheel differential drive architecture
- Manual, automatic and battery-swap charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Production-line transfer
- Conveyor and workstation interface
- Warehouse and distribution handling
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
