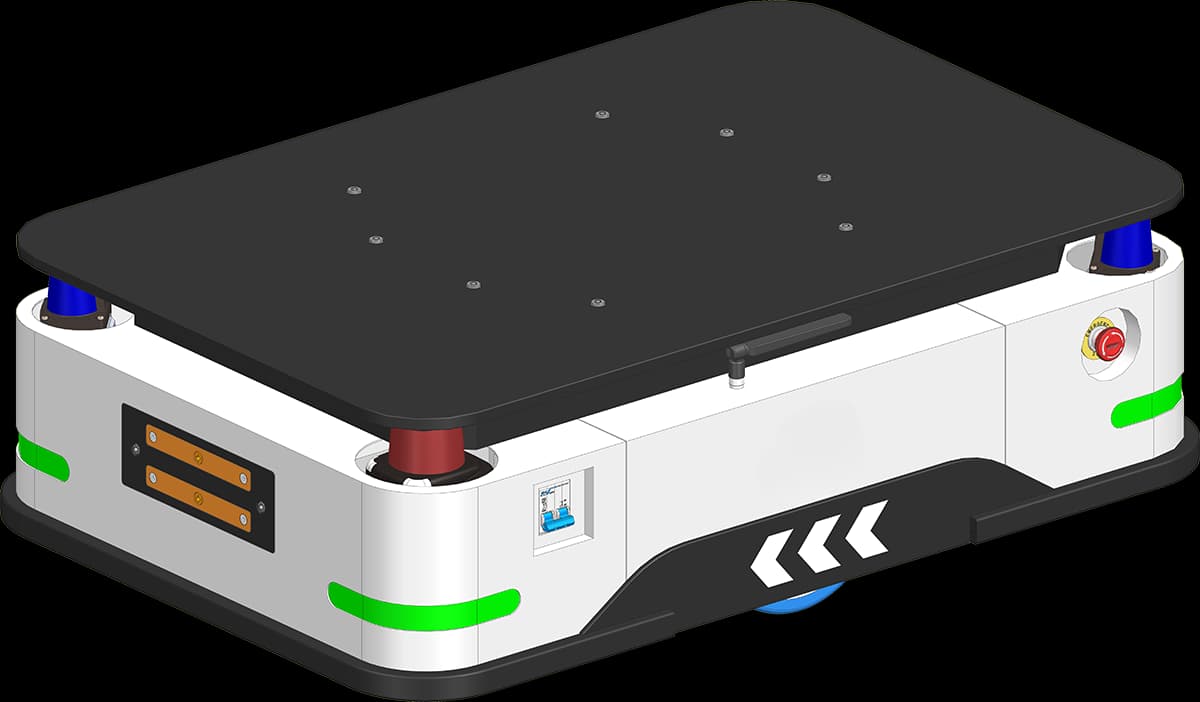

BotOnly AMR-CU-102 Lifting AMR
BotOnly AMR-CU-102 Lifting AMR is designed for autonomous movement of pallets, racks, and work-in-process materials. The current source package lists a verified payload of 1,000 kg, travel speed of 1.35 m/s, lift height of 55 ± 5 mm. Navigation is based on Laser SLAM / reflector fusion navigation.
- Model
- AMR-CU-102
- Product type
- Lifting AMR
- Estimated price range
- US$25,000–50,000
At a glance
Key Specifications
- Rated payload
- 1,000 kg
- Lift height
- 55 ± 5 mm
- Maximum speed
- 1.35 m/s
- Navigation
- Laser SLAM / reflector fusion navigation
- Drive mode
- Two-wheel Differential
- Turning diameter/radius
- 1,060 ± 20 mm
- Positioning accuracy
- ± 5 mm
Technical data
Detailed Specifications
- Dimensions
- 950 mm×580 mm×300 mm
- Vehicle weight
- 210 kg ± 5%
- Rated payload
- 1,000 kg
- Travel direction
- Forward、reverse、turning(rotation)
- Drive mode
- Two-wheel Differential
- Navigation
- Laser SLAM / reflector fusion navigation
- Maximum speed
- 1.35 m/s
- Angular accuracy
- ± 1°
- Lift height
- 55 ± 5 mm
- Positioning accuracy
- ± 5 mm
- Gradeability
- 5% / 10%
- Turning diameter
- 1,060 ± 20 mm
- Battery
- LiFePO4
- Standby time
- 12h
- Charging method
- Manual / automatic
- Charging time
- ≤2.5h
- Safety sensing
- Standard
- Emergency stop
- Standard
- Audible / visual warning
- Standard
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
Description & advantages
The supplier source describes this product as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Source-backed workflow integration beyond the published numeric specifications
Key features
Fusion navigation with automated charging
- Laser SLAM / reflector fusion navigation
- Two-wheel differential drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Warehouse material transport
- Production-line replenishment
- Work-in-process movement
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
