BotOnly

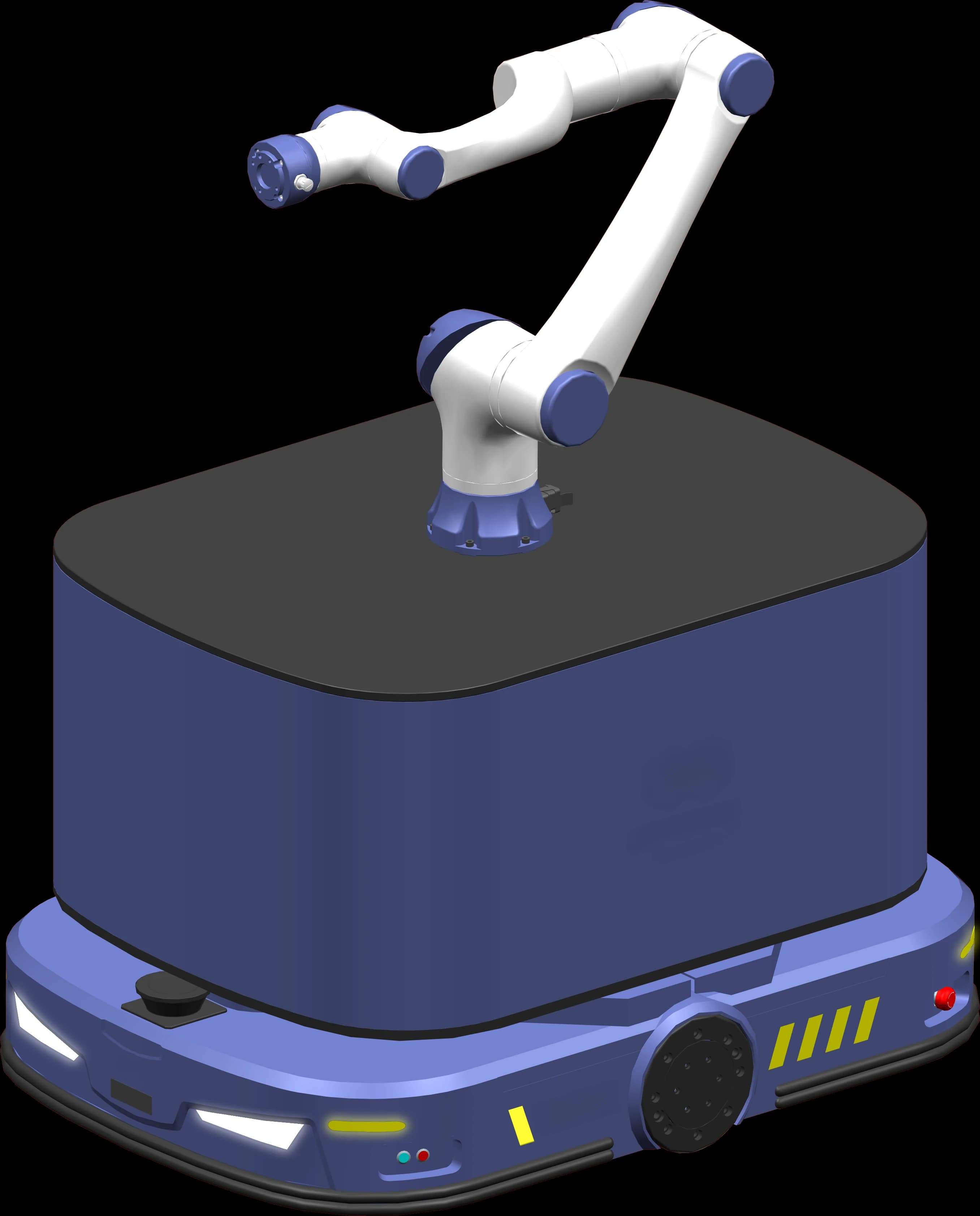

BotOnly AMR-CA-103 Collaborative Robotic Arm AMR
BotOnly AMR-CA-103 Collaborative Robotic Arm AMR is designed for machine tending, assembly support, and mobile pick-and-place. Rated payload 20 kg, travel speed 1.5 m/s.
- Model
- AMR-CA-103
- Product type
- Collaborative Robotic Arm AMR
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 20 kg
- Dimensions
- 1,160 × 820 × (500~1,000) mm
- Maximum speed
- 1.5 m/s
- Runtime
- 6 h
- Turning diameter/radius
- 1,230 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions
- 1,160 × 820 × (500~1,000) mm
- Rated payload
- 20 kg
- Turning diameter
- 1230
- Aisle width
- 1630
- Operating time — unloaded
- 9
- Operating time — full load
- 6
- Vehicle weight
- 278 kg
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Charging time
- 2h
- Maximum speed
- 1.5 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Machine tending
- Flexible assembly
- Mobile inspection and pick-and-place
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
Not sure this is the right machine?
Tell us what needs to move and where. If a different category — or a different supplier — fits your site better, we'll say so.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
