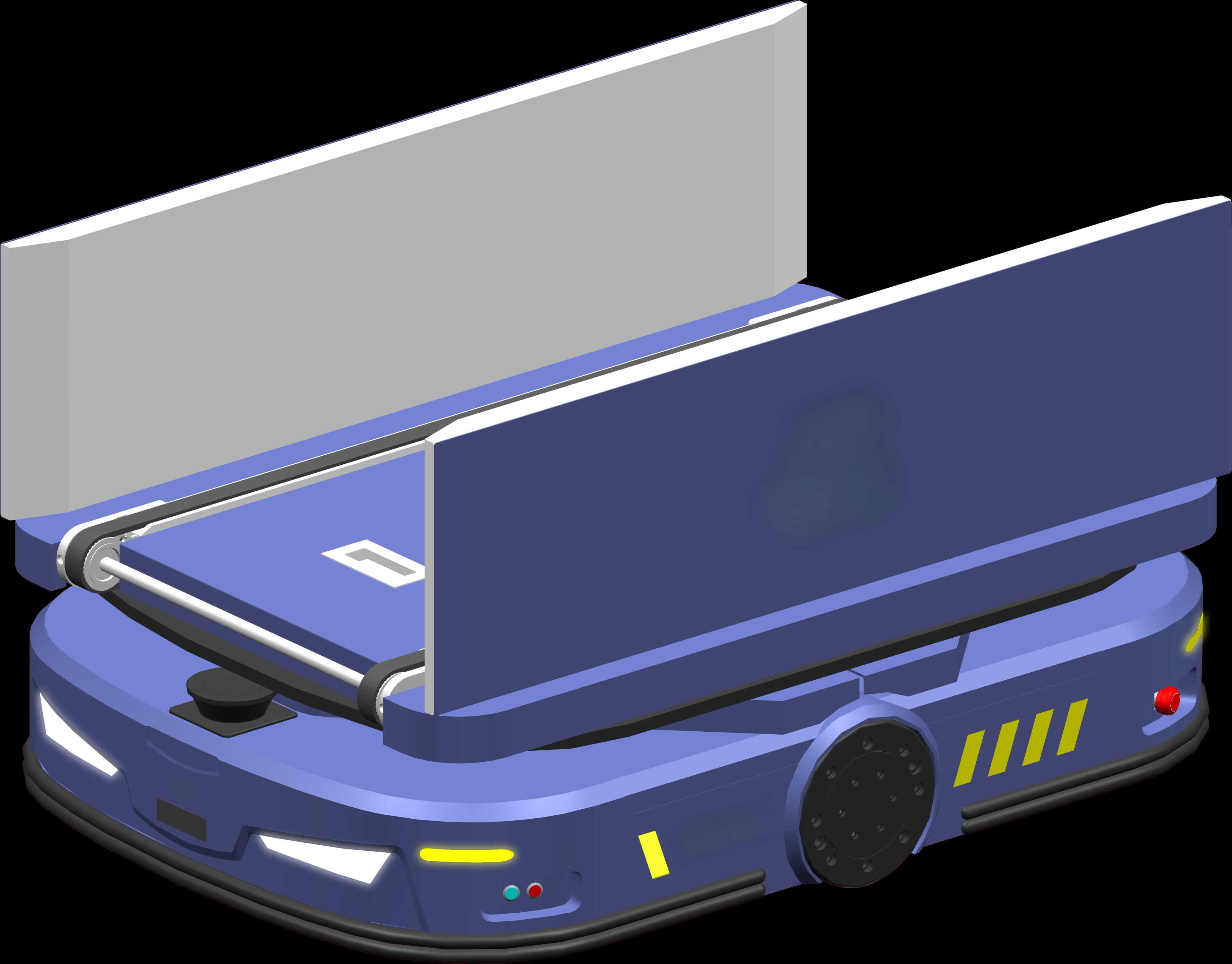

BotOnly AMR-BC-103 Belt Conveyor AMR
BotOnly AMR-BC-103 Belt Conveyor AMR is designed for automated transfer between conveyors, production stations, and warehouse handoff points. The current source package lists a verified payload of 100 kg, travel speed of 1.5 m/s.
- Model
- AMR-BC-103
- Product type
- Belt Conveyor AMR
- Estimated price range
- US$15,000–35,000
At a glance
Key Specifications
- Rated payload
- 100 kg
- Dimensions
- 1,160 × 820 × (310~1,000) mm
- Maximum speed
- 1.5 m/s
- Runtime
- 8 h
- Turning diameter/radius
- 1,230 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions
- 1,160 × 820 × (310~1,000) mm
- Rated payload
- 100 kg
- Turning diameter
- 1230
- Aisle width
- 1630
- Operating time — unloaded
- 10
- Operating time — full load
- 8
- Vehicle weight
- 236 kg
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Charging time
- 2h
- Maximum speed
- 1.5 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Production-line transfer
- Conveyor and workstation interface
- Warehouse and distribution handling
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
