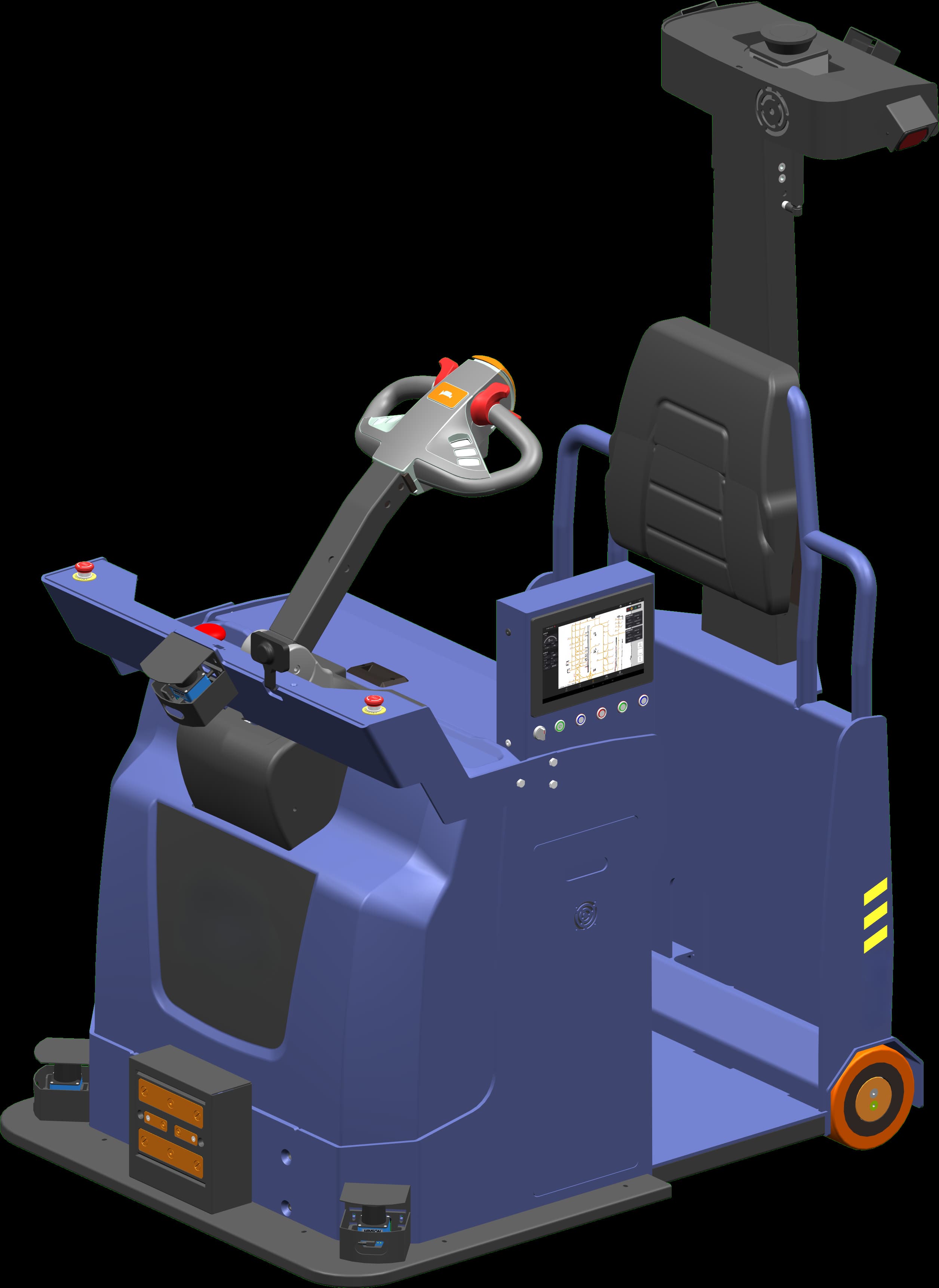

BotOnly AGV-TT-101 Autonomous Tow Tractor
BotOnly AGV-TT-101 Autonomous Tow Tractor is designed for towing carts and material trains between warehouse or production areas. Rated payload 3,000 kg, travel speed 1.8 m/s. Navigation is based on 2D laser SLAM/3D Laser SLAM.
- Model
- AGV-TT-101
- Product type
- Autonomous Tow Tractor
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 3,000 kg
- Dimensions
- 1,580 × 980 × 1,850 mm
- Maximum speed
- 1.8 m/s
- Navigation
- 2D laser SLAM/3D Laser SLAM
- Drive mode
- Single steering wheel
- Runtime
- 6~8 h
- Battery
- 24V200AhLiFePO4
- Turning diameter/radius
- 1,762 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 3,000 kg
- Dimensions
- 1,580 × 980 × 1,850 mm
- Vehicle weight
- 550 ± 5%
- Navigation
- 2D laser SLAM/3D Laser SLAM
- Drive mode
- Single steering wheel
- Pallet compatibility
- /
- Operating method
- Automatic/Manual
- Aisle width
- /
- Turning radius
- 1,762 mm
- Turning diameter
- 2,524 mm
- Gradeability
- 3 mm
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1
- Maximum speed
- 1.8 m/s
- Battery
- 24V200AhLiFePO4
- Standby time
- 24 h
- Operating time — unloaded
- 10~12 h
- Operating time — full load
- 6~8 h
- Charging time
- 2h
- Charging method
- Manual / automatic
- Laser scanner count
- 4
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- √
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3
- Operating temperature / humidity
- 10%～90%
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- WMS/WCS/ERP integration for coordinated material-flow tasks
- Fleet dispatch and traffic coordination for multi-vehicle operation
- Marker-free deployment without major site modification
Key features
Laser SLAM navigation with automated charging
- 2D laser SLAM / 3D laser SLAM navigation
- Single steering wheel drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Cart and material-train towing
- Line-side replenishment
- Indoor/outdoor logistics transfer
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
