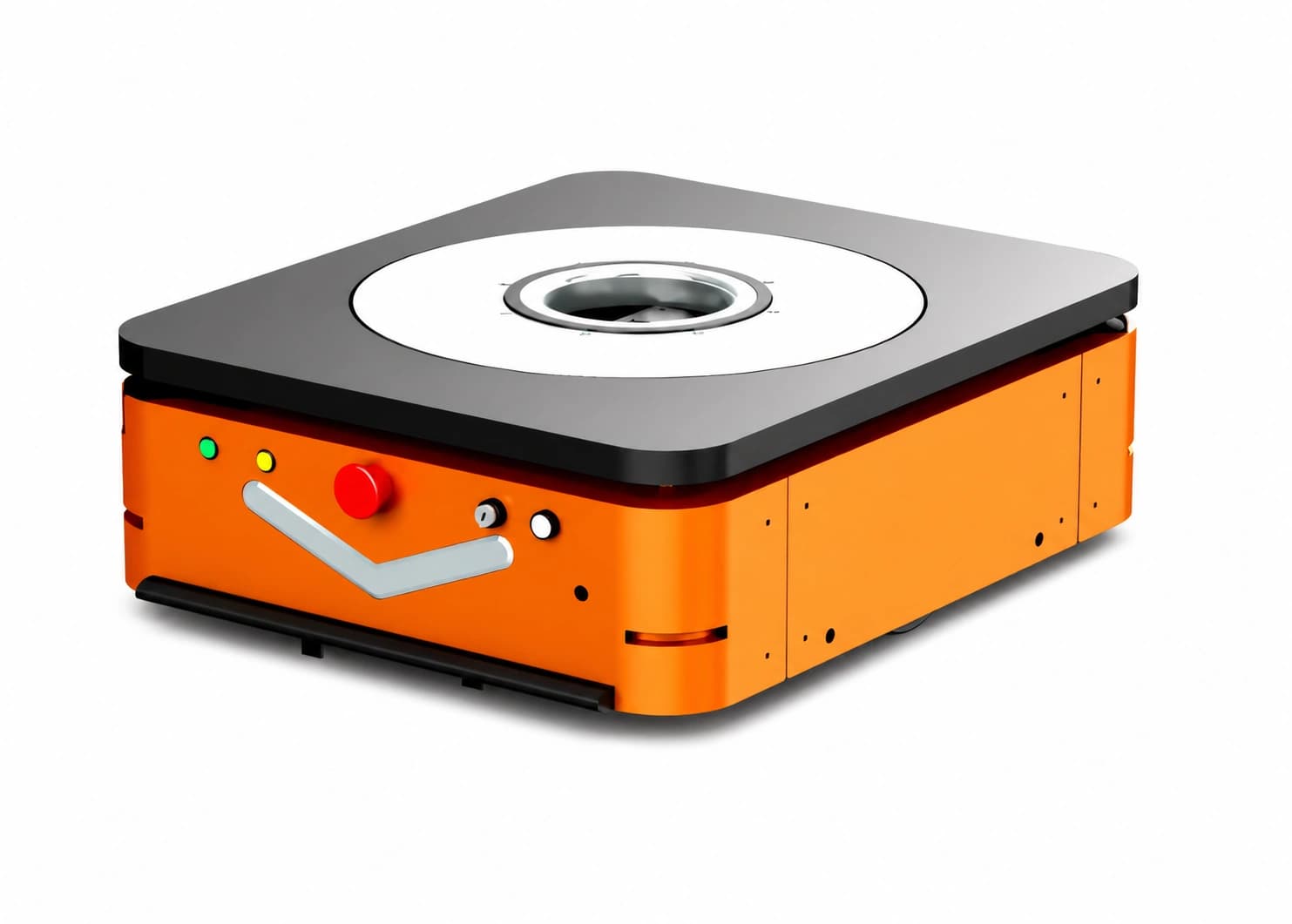

BotOnly AGV-LL-103 Low-Profile Lifting AGV
A low-profile lifting AGV for autonomous movement of pallets, racks and work-in-process loads, with a 1,500 kg payload.
- Model
- AGV-LL-103
- Product type
- Low-Profile Lifting AGV
- Estimated price range
- US$25,000–60,000
At a glance
Key Specifications
- Rated payload
- 1,500 kg
- Dimensions (L×W×H)
- 1,150 × 820 × 260 mm
- Travel speed (loaded/unloaded)
- 1.5/1.8 m/s
- Runtime
- 6–8 h
- Battery
- 48 V / 45 Ah
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions (L×W×H)
- 1,150 × 820 × 260 mm
- Rated payload
- 1,500 kg
- Rotation diameter
- 1,201 mm
- Ground clearance
- 25 mm
- Travel speed (loaded/unloaded)
- 1.5/1.8 m/s
- Gradeability
- ≤5% / 2.8°
- Positioning accuracy
- ± 10 mm
- Battery
- 48 V / 45 Ah
- Runtime
- 6–8 h
- Charging time
- ≤1.5 h
- Vehicle weight
- 180 kg
- Obstacle detection
- Multi-layer obstacle avoidance
Key features
Flexible navigation with multi-mode control
- 2D-code and laser-SLAM fusion navigation
- Differential drive with forward, reverse and rotation modes
- Configurable battery-threshold and idle-charging control
- Laser, safety-edge and emergency-stop protection
- Automatic, manual and remote control
- Wi-Fi roaming with optional 5G expansion
Applications & cases
Where this product fits
- E-commerce goods-to-person transport
- 3C electronics, tobacco and pharmaceutical logistics
- Custom carrier attachments for multi-scenario use
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
