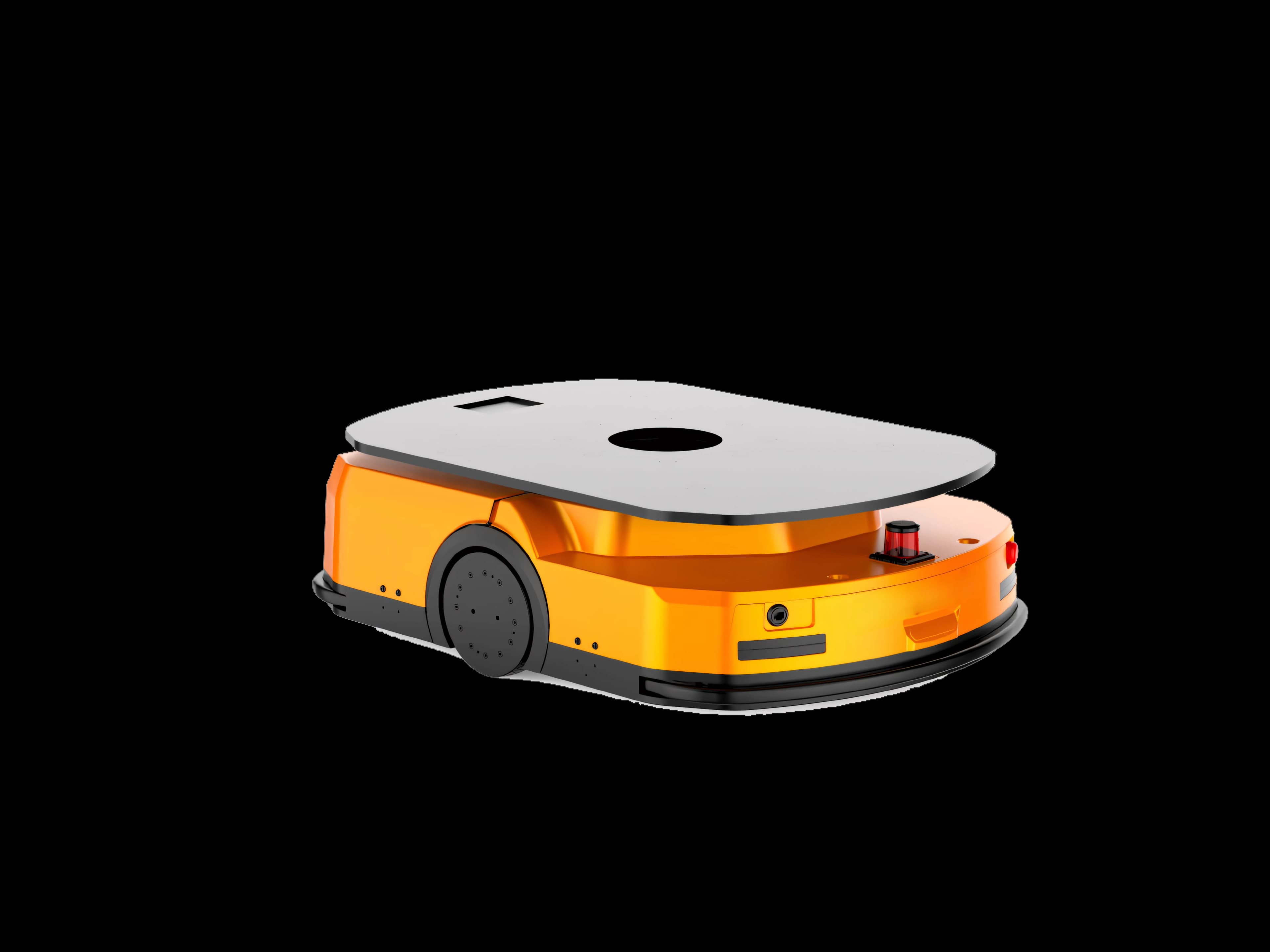

BotOnly AGV-LL-101 Low-Profile Lifting AGV
A low-profile lifting AGV for autonomous movement of pallets, racks and work-in-process loads, with a 1,000 kg rated payload.
- Model
- AGV-LL-101
- Product type
- Low-Profile Lifting AGV
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,000 kg
- Dimensions (L×W×H)
- 1,150 × 820 × 260 mm
- Travel speed (loaded/unloaded)
- 1.5/1.8 m/s
- Runtime
- 6–8 h
- Battery
- 48 V / 40 Ah
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions (L×W×H)
- 1,150 × 820 × 260 mm
- Rated payload
- 1,000 kg
- Rotation diameter
- 1,201 mm
- Ground clearance
- 25 mm
- Travel speed (loaded/unloaded)
- 1.5/1.8 m/s
- Gradeability
- ≤5% / 2.8°
- Positioning accuracy
- ± 10 mm
- Battery
- 48 V / 40 Ah
- Runtime
- 6–8 h
- Charging time
- ≤1.5 h
- Vehicle weight
- 180 kg
- Obstacle detection
- Multi-layer obstacle avoidance
Description & advantages
This product is designed to operate as part of a coordinated storage and production-material workflow rather than an isolated vehicle.
- Rapid mapping and route adjustment for changing production layouts
- AIDT digital-twin monitoring and fault-warning support
- Multi-sensor protection for mixed human and robot operating areas
Key features
Flexible navigation with multi-mode control
- 2D-code and laser-SLAM fusion navigation
- Differential drive with forward, reverse and rotation modes
- Configurable battery-threshold and idle-charging control
- Laser, safety-edge and emergency-stop protection
- Automatic, manual and remote control
- Wi-Fi roaming with optional 5G expansion
Applications & cases
Where this product fits
- E-commerce goods-to-person transport
- 3C electronics, tobacco and pharmaceutical logistics
- Custom carrier attachments for multi-scenario use
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
