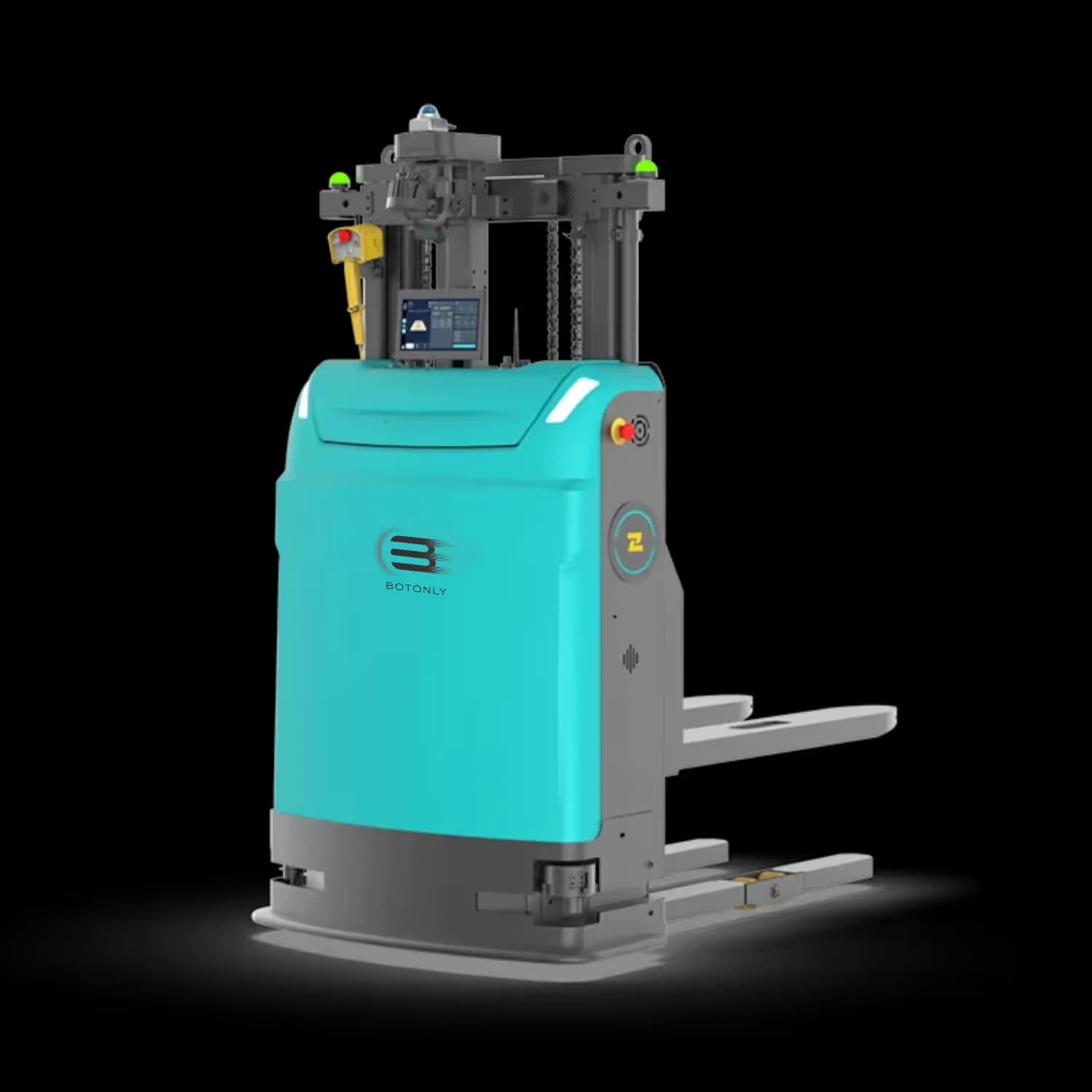

BotOnly STC-PS-120 Pallet Stacker
The BotOnly STC-PS-120 is an autonomous pallet stacker for pallet transport and stacking in warehouses and production facilities. It has a rated load of 1,400 kg and lift configurations up to 3,500 mm, with a load capacity of 1,000 kg at that maximum height. LiDAR navigation is standard, with reflector positioning available as an option.
- Model
- STC-PS-120
- Product type
- Pallet Stacker
At a glance
Key Specifications
- Rated Load
- 1,400 kg
- Maximum Lift Height
- Up to 3,500 mm, depending on mast configuration
- Turning Radius
- 1,184 mm
- Travel Speed
- 1.38 m/s
- Navigation
- LiDAR standard; reflector navigation optional
- Load Capacity at Maximum Lift Height
- 1,000 kg
Technical data
Detailed Specifications
- Rated Load
- 1,400 kg
- Maximum Lift Height
- Up to 3,500 mm, depending on mast configuration
- Turning Radius
- 1,184 mm
- Right-Angle Stacking Aisle
- 2,300 mm
- Travel Speed
- 1.38 m/s
- Positioning Accuracy
- ± 10 mm
- Navigation
- LiDAR standard; reflector navigation optional
- Battery
- Lithium iron phosphate, 200 Ah
- Runtime / Charging
- 6–8 hours; automatic or manual charging
- Load Capacity at Maximum Lift Height
- 1,000 kg
Key features
Flexible pallet stacking configurations
- Compact autonomous pallet transport and stacking
- Multiple mast configurations
- LiDAR navigation with optional reflector positioning
- Pallet pose recognition and goods presence detection
- Obstacle detection, fork-tip collision detection and emergency stop functions
Applications & cases
Where this product fits
- Warehouse pallet transport
- Production-line material movement
- Low-to-medium-height pallet stacking
- Empty-pallet handling
- Transfer between workshop and storage areas
Configuration note
Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
