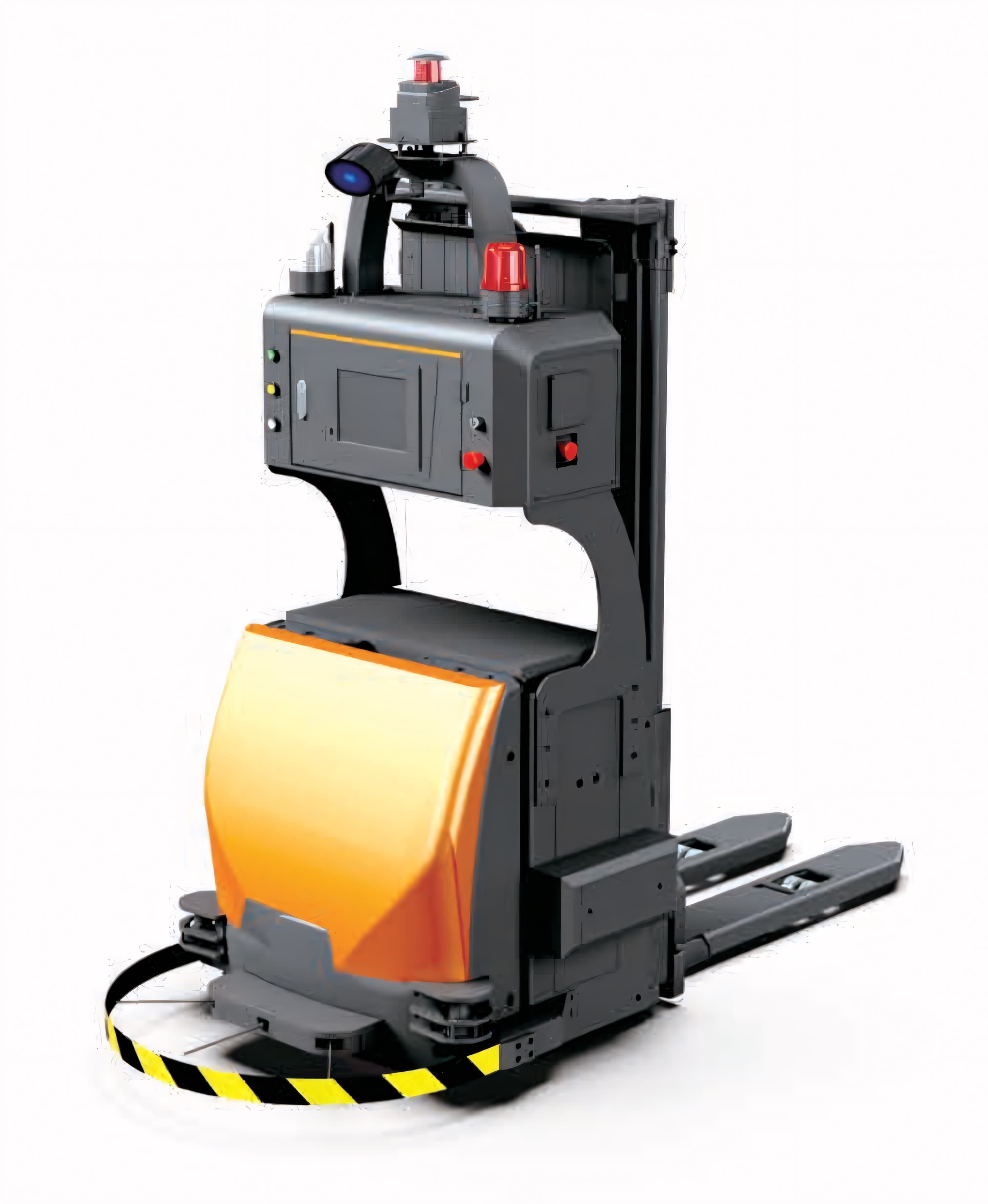

BotOnly STC-PS-119 Front-Leg Pallet Stacker
A standard front-leg pallet stacker for dense storage, line-side transport and rack handling, with a 1,600 kg payload and hybrid navigation options.
- Model
- STC-PS-119
- Product type
- Front-Leg Pallet Stacker
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,600 kg
- Dimensions (L×W×H)
- 2,200 × 1,194 × 2,250 mm
- Lift height
- 2,844 mm
- Travel speed (loaded/unloaded)
- 5/6 km/h
- Runtime
- 6–8 h
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Vehicle type
- Front-leg stacker
- Dimensions (L×W×H)
- 2,200 × 1,194 × 2,250 mm
- Vehicle weight
- 1,450 kg
- Load center
- 600 mm
- Rated payload
- 1,600 kg
- Fork lowered clearance
- 85 mm
- Lift height
- 2,844 mm
- Mast reach
- Non-reach mast
- Fork dimensions
- 1,150 × 180 × 55 mm
- Fork spacing
- 560 mm
- Drive
- Single steering wheel, three-wheel structure
- Navigation
- Laser + 2D code / camera hybrid
- End positioning
- Laser / 2D code / 3D camera
- Minimum stacking aisle
- 3,235 mm
- Operating temperature
- 0–55 °C
- Gap crossing
- 10 mm
- Floor flatness
- ± 5 mm/m
- Travel speed (loaded/unloaded)
- 5/6 km/h
- Gradeability (loaded/unloaded)
- 6%/8%
- Travel
- Forward / reverse / curved turning
- Positioning accuracy
- ± 10 mm; angular accuracy: ± 1°
- Battery
- LiFePO4, 24 V / 200 Ah
- Runtime
- 6–8 h
- Charging
- Manual / automatic; 4/2 h
- Safety
- laser and 3D vision obstacle avoidance, safety contact, fork/load detection, emergency stop, audible/visual warning
Description & advantages
This is a mature standard stacker configuration intended for dense storage, line-side transfer and rack handling.
- Standardized configuration with a shorter production and delivery cycle
- Simple site work for pallet, rack and line-side transfer
- Designed to support logistics automation and digital operations
Key features
Hybrid navigation for dense-storage workflows
- Laser + 2D-code/camera hybrid navigation
- Standard model with shorter production cycle
- Dense-storage, line-side and rack-handling support
- Multi-layer safety sensing
Applications & cases
Where this product fits
- Dense storage
- Production-line transport
- Rack putaway and retrieval
- Tire, automotive, 3C, machinery, chemical, new-energy and metals industries
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
