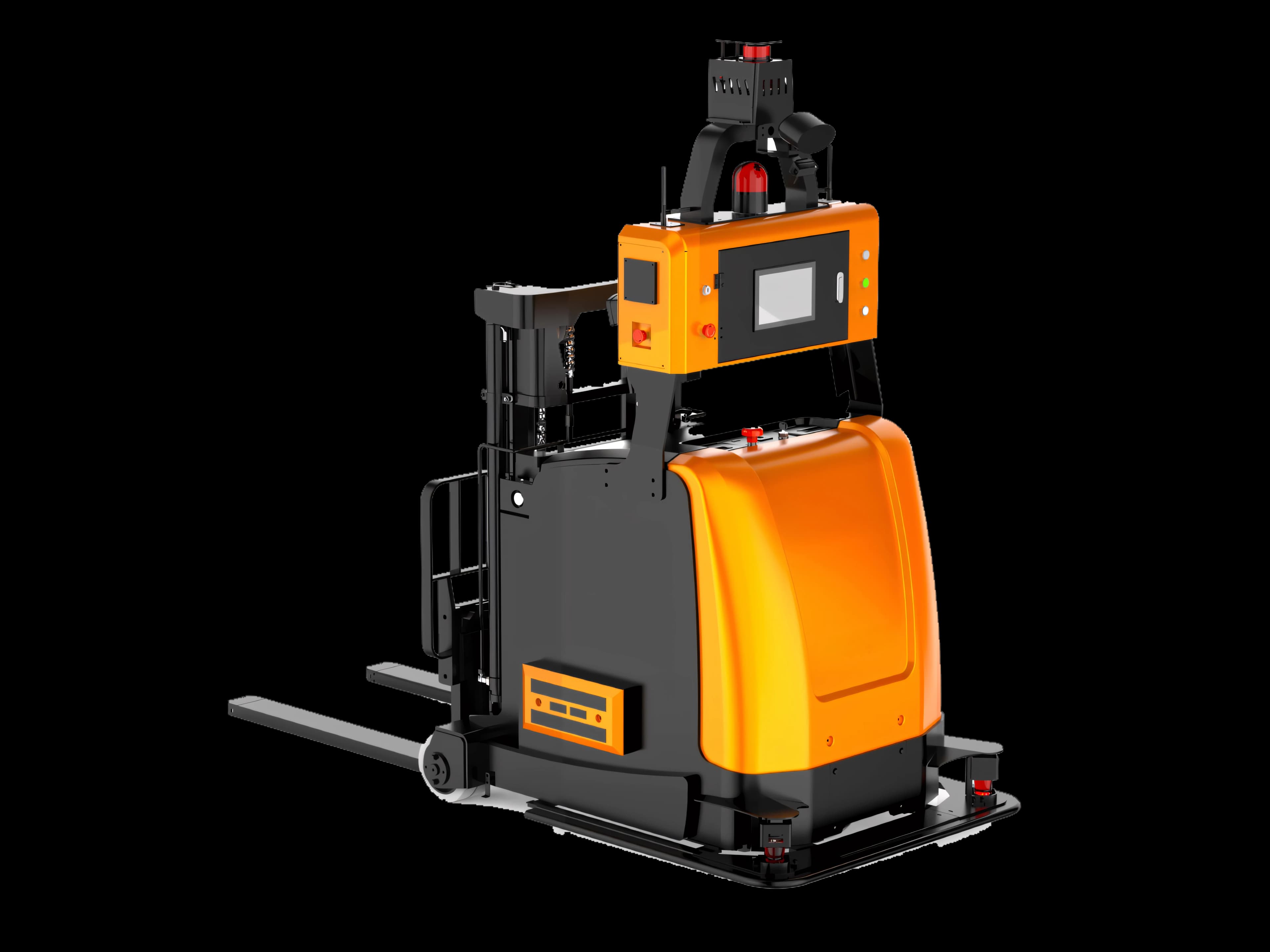

BotOnly STC-PS-115 Counterbalance Pallet Stacker
A counterbalance pallet stacker for automated pallet storage and production-line transfer, with a 1,500 kg payload and 3,000 mm lift.
- Model
- STC-PS-115
- Product type
- Counterbalance Pallet Stacker
- Estimated price range
- US$60,000–120,000
At a glance
Key Specifications
- Rated payload
- 1,500 kg
- Dimensions (L×W×H)
- 2,653 × 1,130 × 2,324 mm
- Lift height
- 3,000 mm
- Travel speed (loaded/unloaded)
- 5/6 km/h
- Runtime
- 6–8 h
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions (L×W×H)
- 2,653 × 1,130 × 2,324 mm
- Navigation
- Laser navigation
- Rated payload
- 1,500 kg
- Lift height
- 3,000 mm
- Minimum stacking aisle
- 3,800 mm
- Travel speed (loaded/unloaded)
- 5/6 km/h
- Positioning accuracy
- ± 10 mm
- Battery
- 24 V / 200 Ah
- Runtime
- 6–8 h
- Charging
- Manual / automatic
- Charging time (manual/automatic)
- 4/2 h
- Vehicle weight
- 2,900 kg
- Obstacle detection
- 3D vision
Description & advantages
The supplier source describes this product as part of a coordinated storage and production-material workflow rather than an isolated vehicle.
- Rapid mapping and route adjustment for changing production layouts
- AIDT digital-twin monitoring and source-backed fault-warning support
- Multi-sensor protection for mixed human and robot operating areas
Key features
Counterbalance stacking with 3D obstacle detection
- Counterbalance pallet stacking
- Laser navigation
- 3D obstacle detection
- Manual and automatic charging
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Warehouse rack handling
- Production-line material transfer
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
