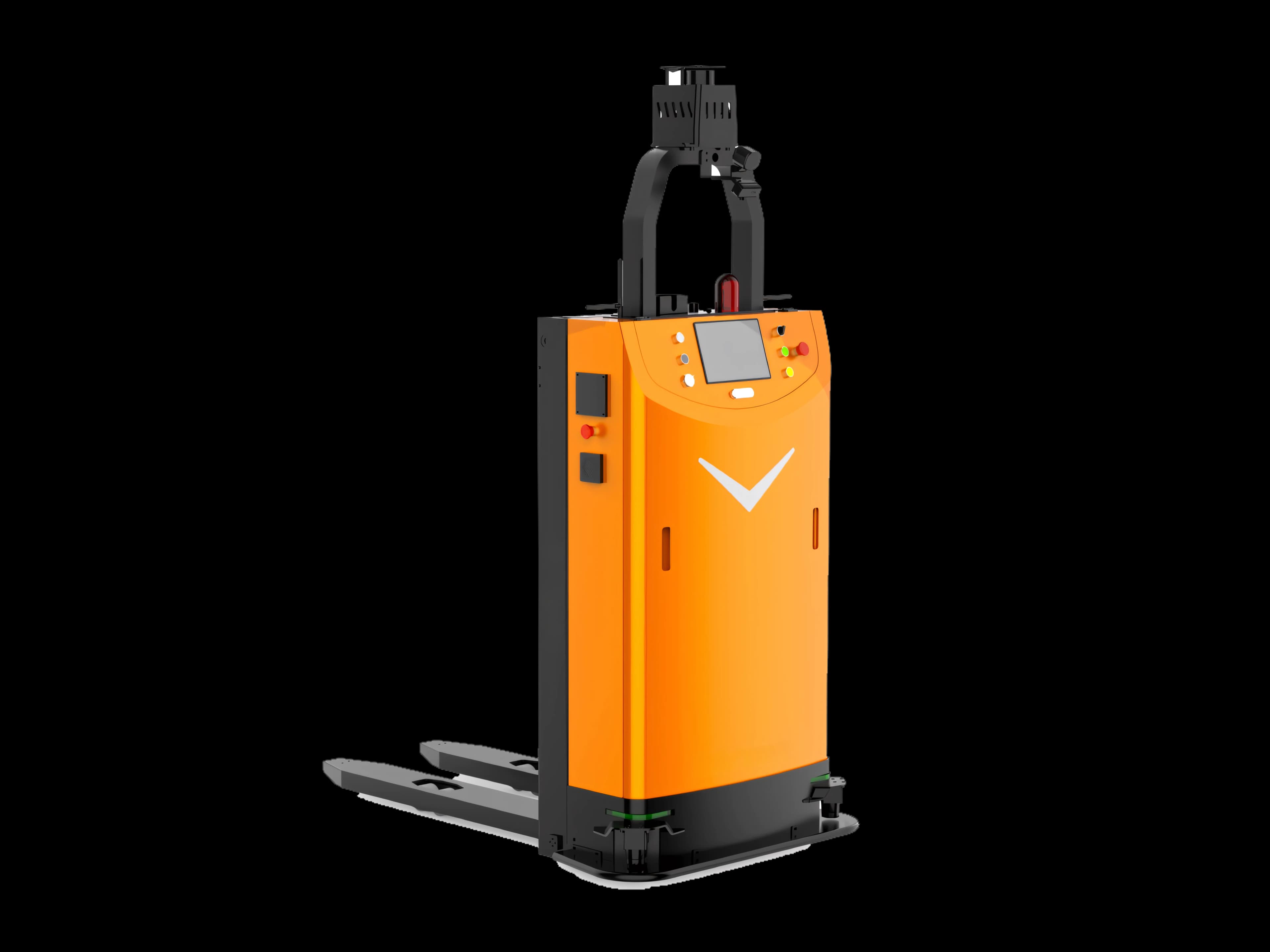

BotOnly STC-PS-112 Narrow-Aisle Pallet Stacker
A narrow-aisle front-leg pallet stacker for pallet putaway and retrieval, with a 1,500 kg payload and 2,000 mm lift height.
- Model
- STC-PS-112
- Product type
- Narrow-Aisle Pallet Stacker
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,500 kg
- Dimensions (L×W×H)
- 1,709 × 1,010 × 2,238 mm
- Lift height
- 2,000 mm
- Travel speed (loaded/unloaded)
- 5/6 km/h
- Runtime
- 6–8 h
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Dimensions (L×W×H)
- 1,709 × 1,010 × 2,238 mm
- Navigation
- Laser navigation
- Rated payload
- 1,500 kg
- Lift height
- 2,000 mm
- Minimum stacking aisle
- 2,980 mm
- Travel speed (loaded/unloaded)
- 5/6 km/h
- Gradeability (loaded/unloaded)
- 3%/5%
- Positioning accuracy
- ± 10 mm
- Battery
- 24 V / 150 Ah
- Runtime
- 6–8 h
- Charging
- Manual / automatic
- Charging time (manual/automatic)
- 3/1.5 h
- Vehicle weight
- 700 kg
- Obstacle detection
- Multi-layer obstacle avoidance
Description & advantages
This stacker is designed to operate as part of a pallet-transfer and rack-handling workflow, including line-side handoff and automated storage tasks.
- One-click mapping and visual route editing simplify deployment
- Modular standardized components support operation and maintenance
- Safety-loop monitoring can report sensor faults proactively
Key features
Narrow-aisle stacking with layered safety
- Narrow-aisle front-leg stacking
- Laser navigation
- Multi-layer obstacle avoidance
- Manual and automatic charging
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Narrow-aisle storage
- Rack and production-line interface
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
