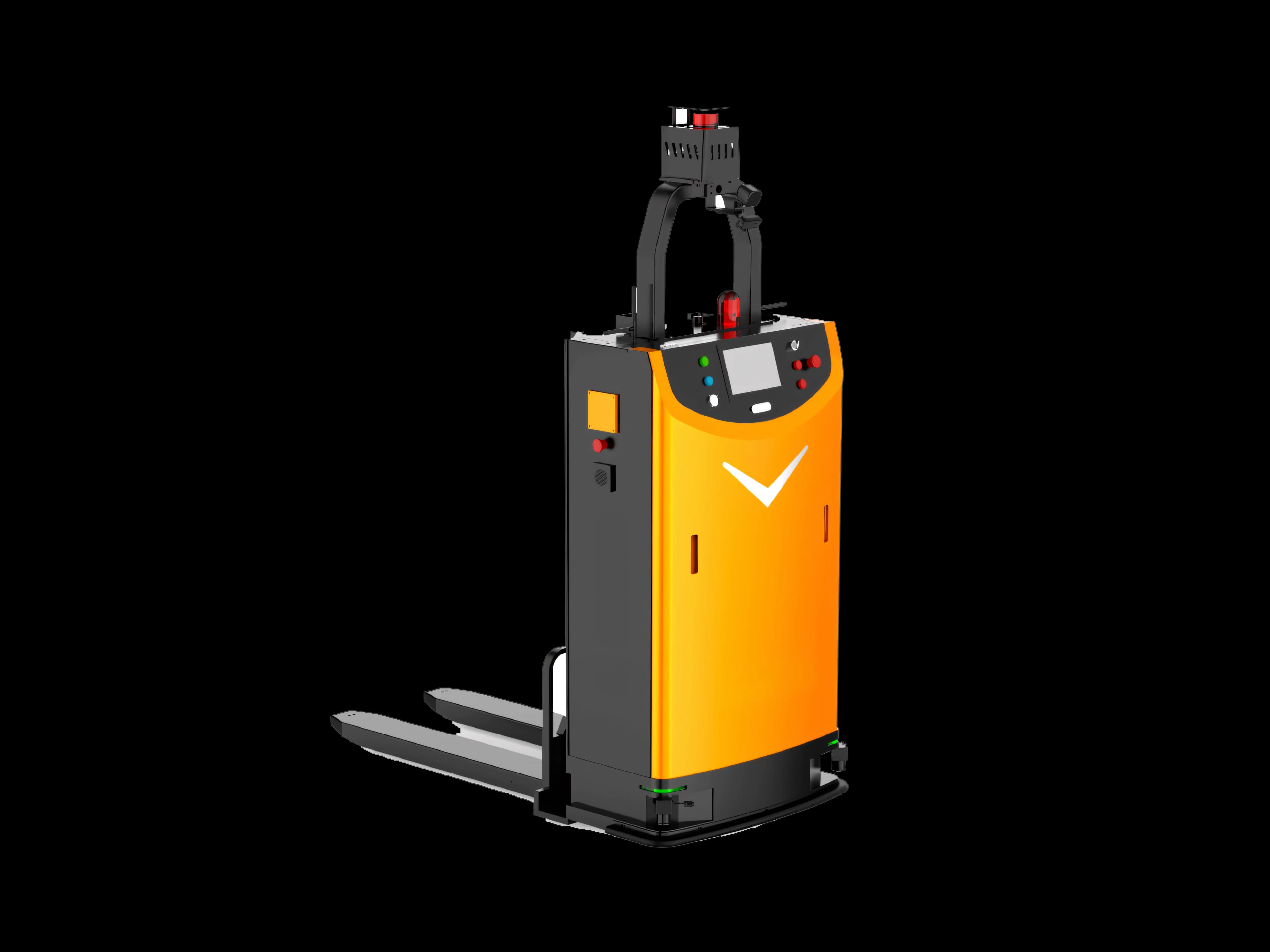

BotOnly STC-PS-111 Omnidirectional Pallet Stacker
An omnidirectional front-leg pallet stacker for flexible pallet positioning in constrained aisles, with a 1,000 kg payload.
- Model
- STC-PS-111
- Product type
- Omnidirectional Pallet Stacker
- Estimated price range
- US$50,000–80,000
At a glance
Key Specifications
- Rated payload
- 1,000 kg
- Dimensions (L×W×H)
- 1,780 × 909 × 2,226 mm
- Lift height
- 120 mm
- Travel speed (loaded/unloaded)
- 3.6/4 km/h
- Runtime
- 10–12 h
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions (L×W×H)
- 1,780 × 909 × 2,226 mm
- Navigation
- Laser navigation
- Rated payload
- 1,000 kg
- Lift height
- 120 mm
- Minimum stacking aisle
- 2,377 mm
- Travel speed (loaded/unloaded)
- 3.6/4 km/h
- Gradeability (loaded/unloaded)
- 3%/5%
- Positioning accuracy
- ± 10 mm
- Battery
- 24 V / 150 Ah
- Runtime
- 10–12 h
- Charging
- Manual / automatic
- Charging time (manual/automatic)
- 3/1.5 h
- Vehicle weight
- 600 kg
- Obstacle detection
- Multi-layer obstacle avoidance
Description & advantages
The supplier source describes this stacker as part of a pallet-transfer and rack-handling workflow, including line-side handoff and automated storage tasks.
- One-click mapping and visual route editing simplify deployment
- Modular standardized components support operation and maintenance
- Safety-loop monitoring can report sensor faults proactively
Key features
Omnidirectional positioning with layered safety
- Omnidirectional positioning
- Laser navigation
- Multi-layer obstacle avoidance
- Manual and automatic charging
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Constrained-aisle positioning
- Production-line and warehouse transfer
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
