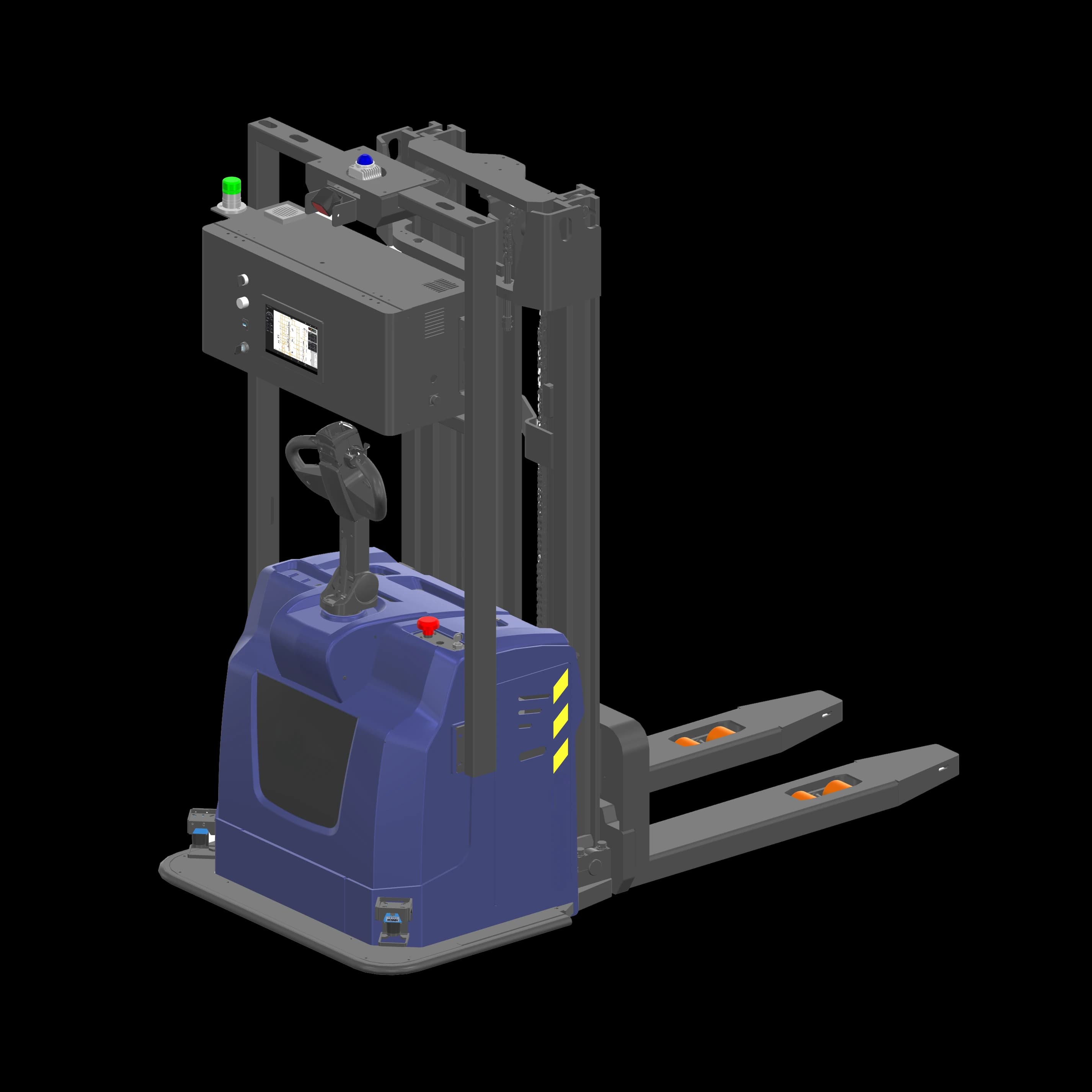

BotOnly STC-PS-110 Standard Pallet Stacker
BotOnly STC-PS-110 Standard Pallet Stacker is designed for pallet putaway, retrieval, and vertical transfer between floor and rack positions. The current source package lists a verified payload of 2,000 kg, travel speed of 1.5 m/s.
- Model
- STC-PS-110
- Product type
- Standard Pallet Stacker
- Estimated price range
- US$50,000–80,000
At a glance
Key Specifications
- Rated payload
- 2,000 kg
- Dimensions
- 2,100 × 1,105 × 2,050 mm
- Maximum speed
- 1.5 m/s
- Turning diameter/radius
- 3,800 mm
- Positioning accuracy
- ± 15 mm
Technical data
Detailed Specifications
- Rated payload
- 2,000 kg
- Dimensions
- 2,100 × 1,105 × 2,050 mm
- Lift height
- 3,000 mm
- Turning diameter
- 3800
- Aisle width
- 2788
- Positioning accuracy
- ± 15 mm
- Angular accuracy
- ± 1°
- Drive mode
- Single Steering Wheel（Single steering wheel）
- Maximum speed
- 1.5 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Rack and production-line interface
- High-density warehouse storage
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
Request a Quote
Discuss your application with our team to get a configuration and pricing plan tailored to your site.
