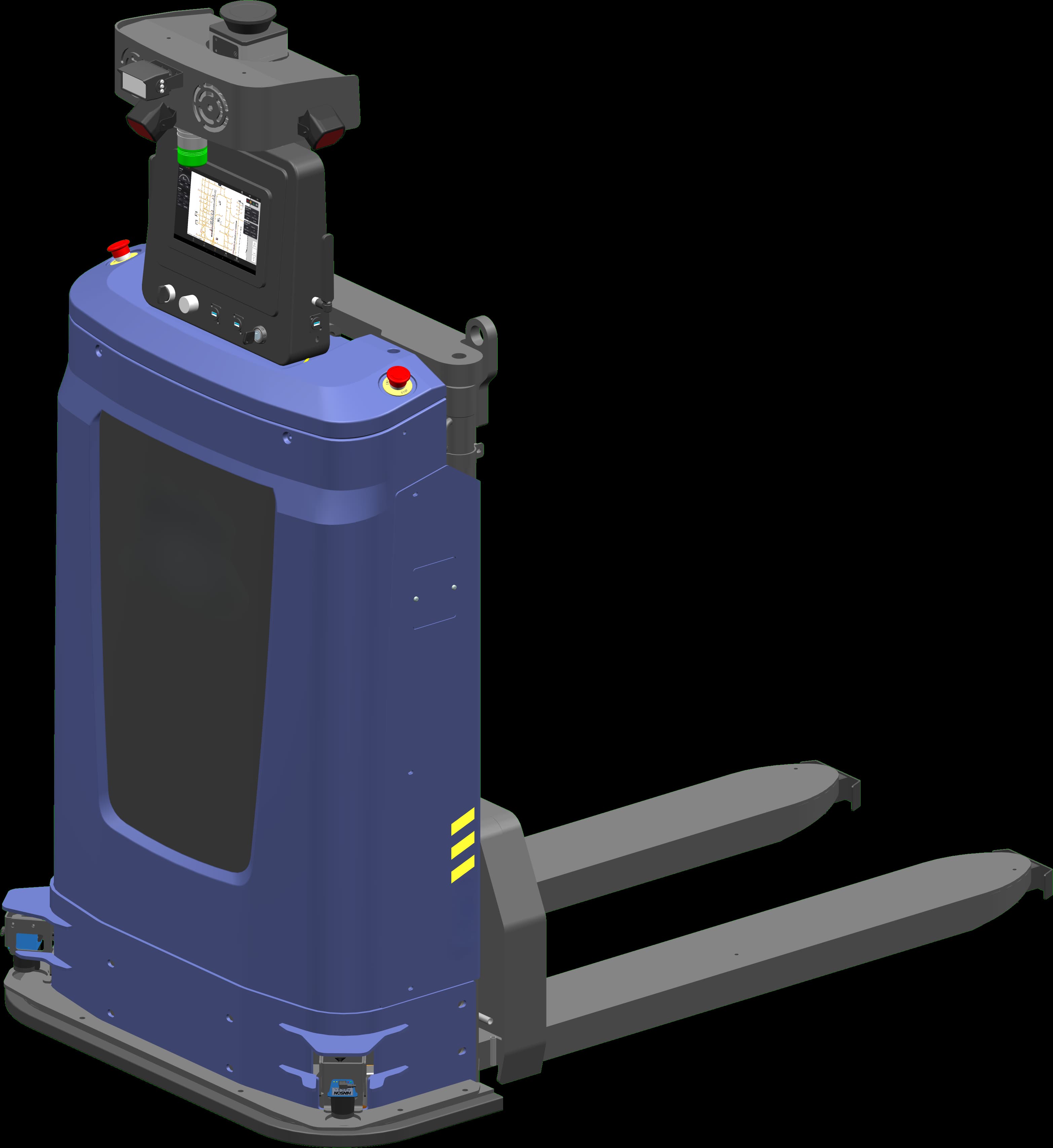

BotOnly STC-PS-109 Compact Pallet Stacker
BotOnly STC-PS-109 Compact Pallet Stacker is designed for pallet putaway, retrieval, and vertical transfer between floor and rack positions. Rated payload 1,400 kg, travel speed 1.3 m/s.
- Model
- STC-PS-109
- Product type
- Compact Pallet Stacker
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,400 kg
- Dimensions
- 1,740 × 970 × 1,915 mm
- Maximum speed
- 1.3 m/s
- Turning diameter/radius
- 2,320 mm
- Positioning accuracy
- ± 15 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 1,400 kg
- Dimensions
- 1,740 × 970 × 1,915 mm
- Lift height
- 2,500 mm
- Turning diameter
- 2320
- Aisle width
- 2385
- Positioning accuracy
- ± 15 mm
- Angular accuracy
- ± 1°
- Drive mode
- Single Steering Wheel（Single steering wheel）
- Maximum speed
- 1.3 m/s
Key features
Integrated safety monitoring and alerts
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Rack and production-line interface
- High-density warehouse storage
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
