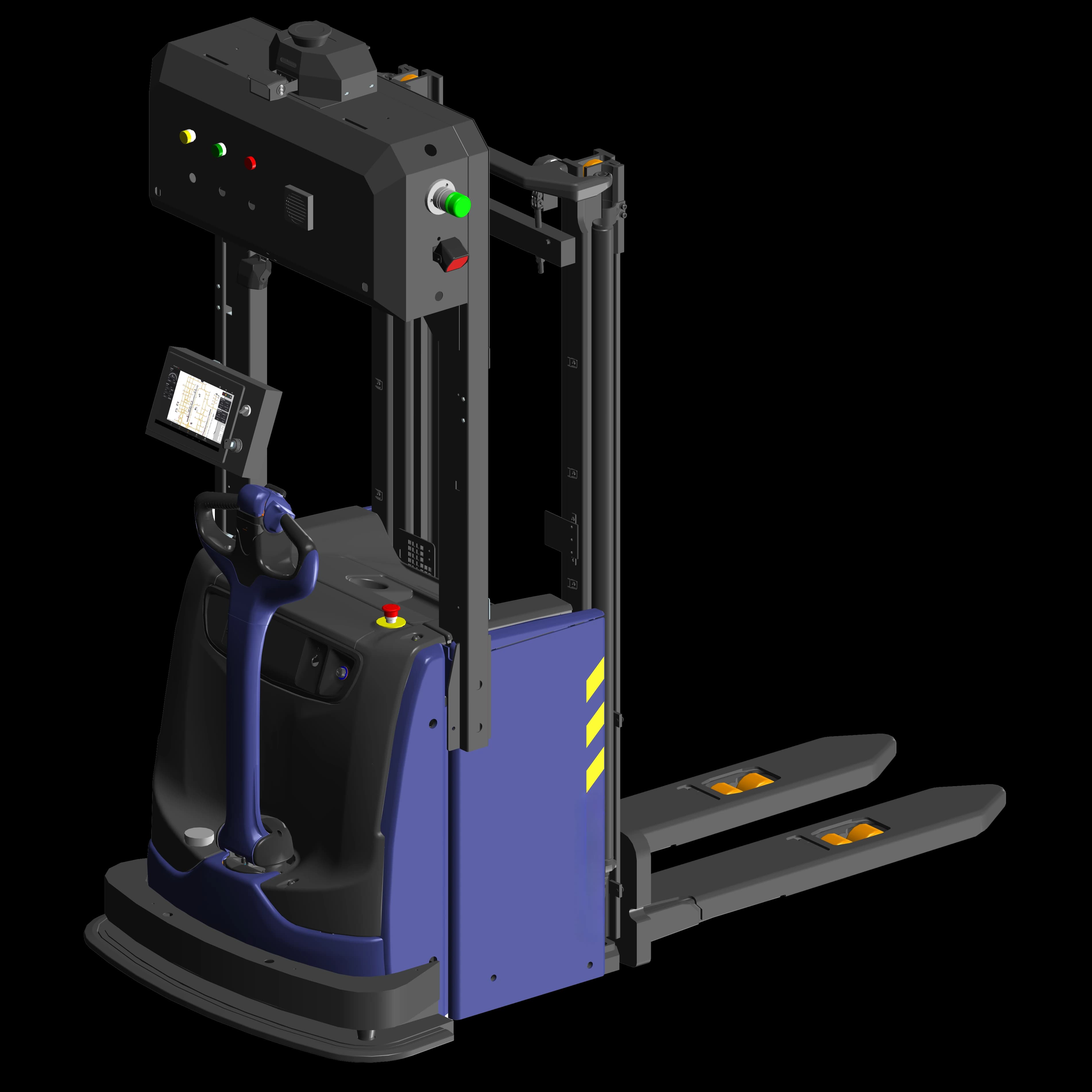

BotOnly STC-PS-106 Autonomous Pallet Stacker
BotOnly STC-PS-106 Autonomous Pallet Stacker is designed for pallet putaway, retrieval, and vertical transfer between floor and rack positions. Rated payload 2,000 kg, travel speed 1.7 m/s, lift height (2,684-2,924) ± 5 mm. Navigation is based on 2D laser SLAM/3D Laser SLAM.
- Model
- STC-PS-106
- Product type
- Autonomous Pallet Stacker
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 2,000 kg
- Dimensions
- (2,130~2,170) × 1,040 × 2,275 mm
- Lift height
- (2,684-2,924) ± 5 mm
- Maximum speed
- 1.7 m/s
- Navigation
- 2D laser SLAM/3D Laser SLAM
- Drive mode
- Single steering wheel
- Runtime
- 8~10 h
- Battery
- 24V270AhLiFePO4
- Turning diameter/radius
- 3,412/3,592 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 2,000 kg
- Dimensions
- (2,130~2,170) × 1,040 × 2,275 mm
- Lift height
- (2,684-2,924) ± 5 mm
- Vehicle weight
- (1300-1505) ± 5%
- Navigation
- 2D laser SLAM/3D Laser SLAM
- Drive mode
- Single steering wheel
- Pallet compatibility
- three-runner pallet/rack
- Operating method
- Automatic/Manual
- Fork dimensions
- 1,150 × 182 × 55 mm
- Aisle width
- 2,842 mm
- Turning diameter
- 3,412/3,592 mm
- Gradeability
- 5%
- Obstacle crossing
- 10 mm
- Gap crossing
- 30 mm
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Maximum speed
- 1.7 m/s
- Battery
- 24V270AhLiFePO4
- Standby time
- 24 h
- Operating time — unloaded
- 10~12 h
- Operating time — full load
- 8~10 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 3
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- √
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3 mm
- Operating temperature / humidity
- 10%～90%
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Pallet compatibility and pallet-recognition support
Key features
Laser SLAM navigation with automated charging
- 2D laser SLAM / 3D laser SLAM navigation
- Single steering wheel drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Rack and production-line interface
- High-density warehouse storage
