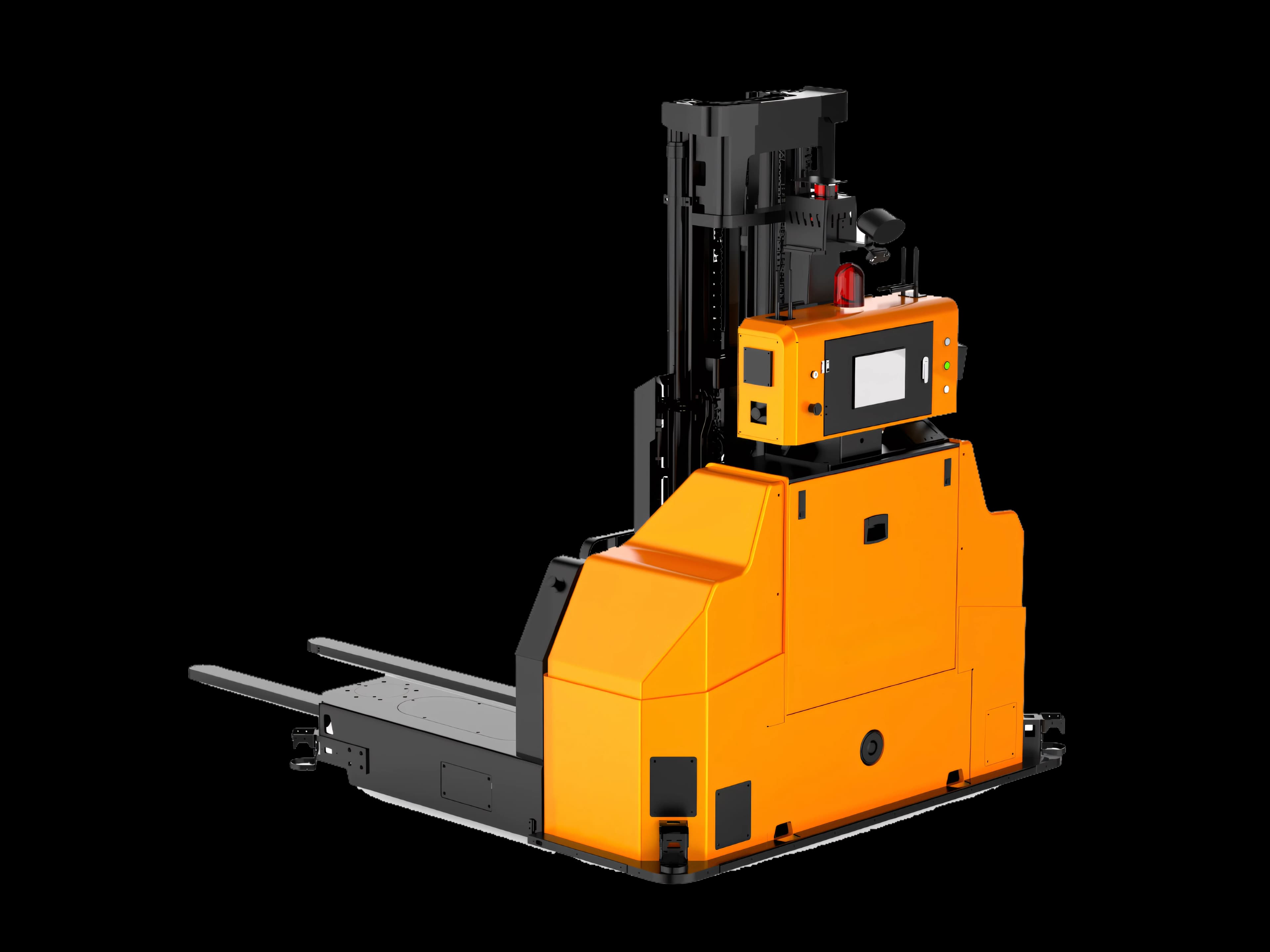

BotOnly FLT-RT-117 Omnidirectional Autonomous Reach Truck
An omnidirectional autonomous reach truck for flexible pallet handling and rack access, with a 2,000 kg payload and 3,000 mm lift.
- Model
- FLT-RT-117
- Product type
- Omnidirectional Autonomous Reach Truck
- Estimated price range
- US$70,000–120,000
At a glance
Key Specifications
- Rated payload
- 2,000 kg
- Dimensions (L×W×H)
- 2,020 × 2,110 × 2,400 mm
- Lift height
- 3,000 mm
- Travel speed (loaded/unloaded)
- 3.6/5.4 km/h
- Runtime
- 6–8 h
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions (L×W×H)
- 2,020 × 2,110 × 2,400 mm
- Vehicle weight
- 3,100 kg
- Rated payload
- 2,000 kg
- Lift height
- 3,000 mm
- Mast reach
- 1,030 mm
- Fork dimensions
- 1,200 × 100 × 50 mm
- Fork spacing
- 700 mm
- Drive
- Dual steering wheels
- Battery
- 24 V / 210 Ah
- Runtime
- 6–8 h
- Travel speed (loaded/unloaded)
- 3.6/5.4 km/h
- Minimum stacking aisle
- 2,700 mm
- Positioning accuracy
- ± 10 mm
Description & advantages
The supplier source describes this product as part of a coordinated storage and production-material workflow rather than an isolated vehicle.
- Rapid mapping and route adjustment for changing production layouts
- AIDT digital-twin monitoring and source-backed fault-warning support
- Multi-sensor protection for mixed human and robot operating areas
Key features
Omnidirectional reach handling and positioning
- Omnidirectional reach-truck movement
- Dual-steering-wheel drive
Applications & cases
Where this product fits
- Pallet putaway and retrieval
- Warehouse rack access
- Production-line replenishment
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
