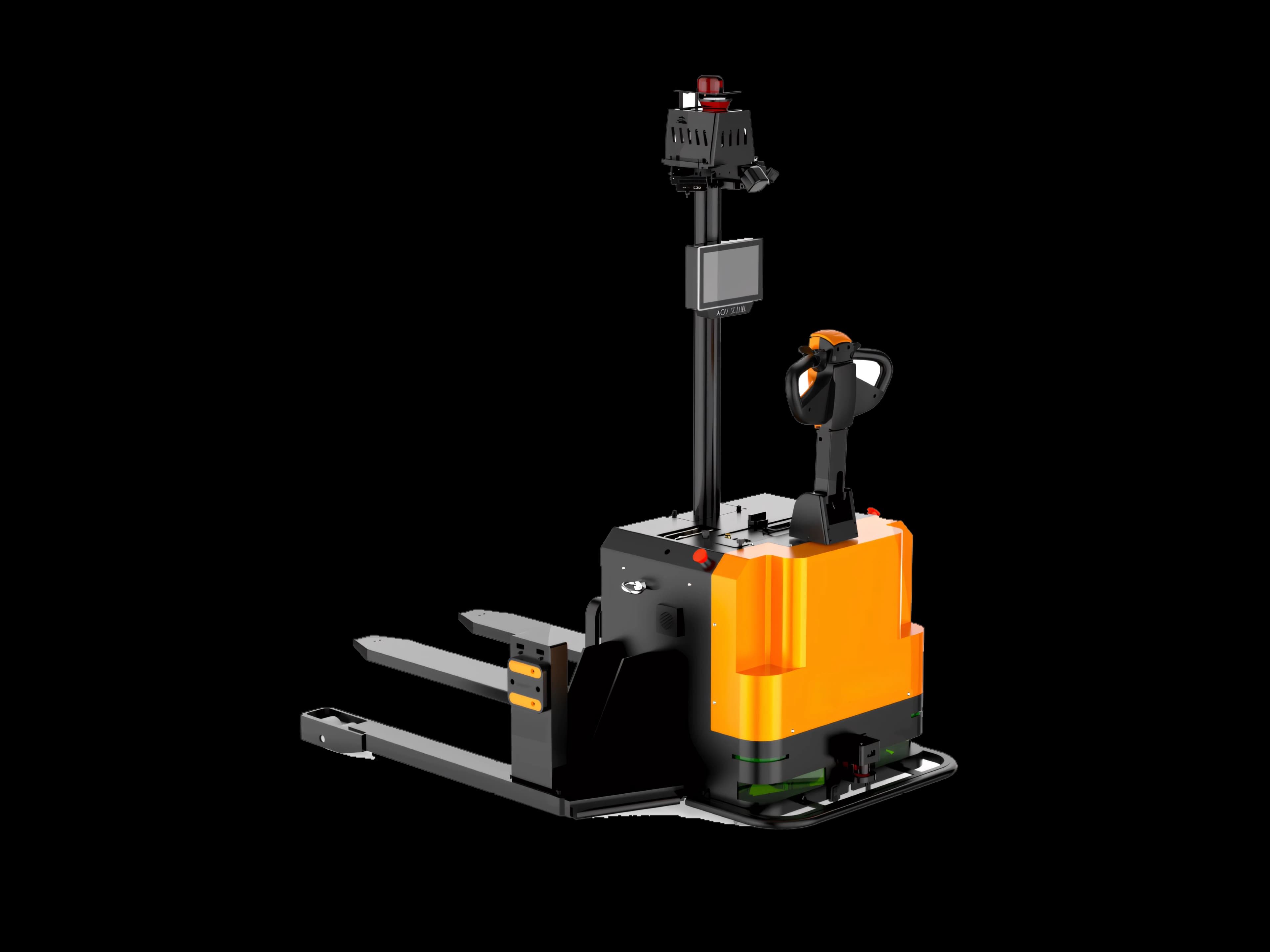

BotOnly FLT-PH-115 Wide-Leg Pallet-Handling Forklift
A wide-leg pallet-handling forklift for automated pallet movement, with laser navigation, a 1,000 kg payload and manual/automatic charging.
- Model
- FLT-PH-115
- Product type
- Wide-Leg Pallet-Handling Forklift
- Estimated price range
- US$35,000–65,000
At a glance
Key Specifications
- Rated payload
- 1,000 kg
- Dimensions (L×W×H)
- 1,930 × 1,340 × 1,900 mm
- Lift height
- 120 mm
- Travel speed (loaded/unloaded)
- 4/5 km/h
- Runtime
- 6–8 h
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Dimensions (L×W×H)
- 1,930 × 1,340 × 1,900 mm
- Navigation
- Laser navigation
- Rated payload
- 1,000 kg
- Lift height
- 120 mm
- Minimum stacking aisle
- 2,820 mm
- Travel speed (loaded/unloaded)
- 4/5 km/h
- Gradeability (loaded/unloaded)
- 3%/5%
- Positioning accuracy
- ± 10 mm
- Battery
- 24 V / 90 Ah
- Runtime
- 6–8 h
- Charging
- Manual / automatic
- Charging time (manual/automatic)
- 3/2 h
- Vehicle weight
- 500 kg
- Obstacle detection
- Multi-layer obstacle avoidance
Description & advantages
The supplier source positions this vehicle for flexible pallet or carrier movement in mixed production and warehouse environments.
- Dynamic mapping and flexible route updates for changing operating areas
- Manual and automatic operation can be switched for exception handling
- Standardized rapid deployment reduces onsite commissioning work
- Source-provided voice commands support pickup and fault-diagnosis tasks
Key features
Wide-leg pallet handling with flexible routing
- Wide-leg chassis for pallet handling
- Laser navigation and flexible route planning
- Multi-layer obstacle avoidance
- Manual and automatic charging
Applications & cases
Where this product fits
- Pallet transport
- Production-line replenishment
- Warehouse transfer
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
