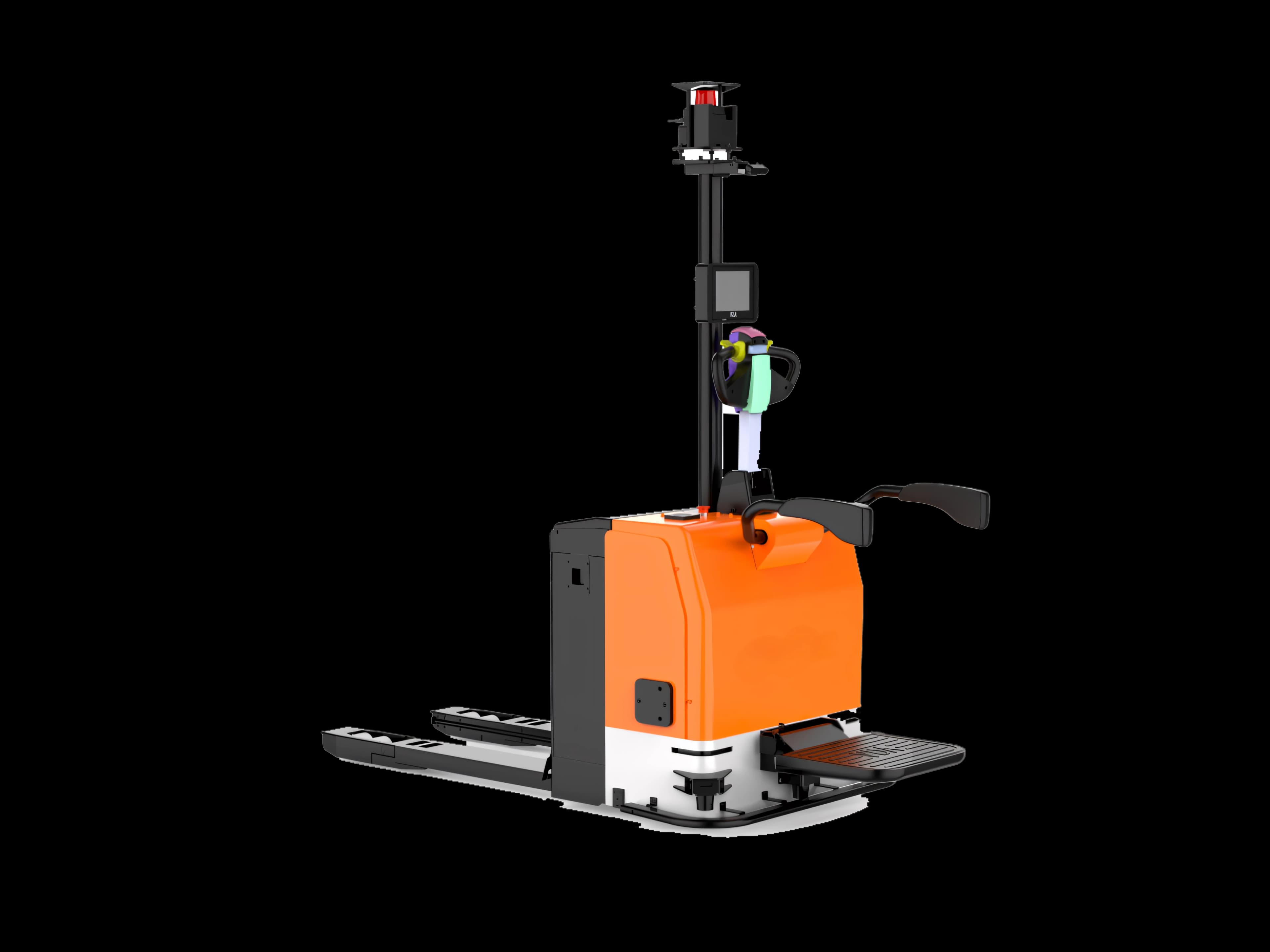

BotOnly FLT-PH-114 Manual/Automatic Pallet-Handling Forklift
A 2,000 kg manual/automatic pallet-handling forklift with laser navigation, manual/automatic/semi-automatic operation and multi-layer safety sensing.
- Model
- FLT-PH-114
- Product type
- Manual/Automatic Pallet-Handling Forklift
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 2,000 kg
- Dimensions (L×W×H)
- 1,983 × 840 × 1,900 mm
- Lift height
- 120 mm
- Travel speed (loaded/unloaded)
- 4/5 km/h
- Runtime
- 10–12 h
- Navigation
- Laser navigation
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Vehicle type
- Front-leg pallet-handling, manual/automatic
- Dimensions (L×W×H)
- 1,983 × 840 × 1,900 mm
- Vehicle weight
- 500 kg
- Load center
- 600 mm
- Rated payload
- 2,000 kg
- Fork lowered clearance
- 85 mm
- Lift height
- 120 mm
- Fork dimensions
- 1,300 × 170 × 61 mm
- Fork spacing
- 600 mm
- Drive
- Single steering wheel
- Navigation
- Laser navigation
- End positioning options
- Laser / 2D code / 3D camera
- Operation
- Manual / automatic / semi-automatic
- Minimum stacking aisle
- 2,770 mm
- Operating temperature
- 0–55 °C
- Gap crossing
- 10 mm
- Floor flatness
- ± 5 mm/m
- Travel speed (loaded/unloaded)
- 4/5 km/h
- Gradeability (loaded/unloaded)
- 3%/5%
- Travel
- Forward / reverse / left / right
- Positioning accuracy
- ± 10 mm; angular accuracy: ± 1°
- Single-lane aisle
- 1,300 mm; double-lane aisle: 2,600 mm
- Battery
- LiFePO4, 24 V / 160 Ah
- Charger
- 24 V / 100 A station; 24 V / 50 A manual
- Runtime
- 10–12 h
- Charging time (manual/automatic)
- 3/1.5 h
- Safety
- laser and 3D obstacle avoidance, contact safety, fork/load detection, emergency stop, audible/visual warning
Description & advantages
This vehicle is designed for flexible pallet or carrier movement in mixed production and warehouse environments.
- Dynamic mapping and flexible route updates for changing operating areas
- Manual and automatic operation can be switched for exception handling
- Standardized rapid deployment reduces onsite commissioning work
Key features
Multi-mode operation with layered safety
- Laser navigation
- Manual, automatic and semi-automatic operating modes
- Multi-layer obstacle avoidance and safety monitoring
- Manual and automatic charging
Applications & cases
Where this product fits
- Pallet transport
- Line-side material replenishment
- Warehouse transfer and rack-interface workflows
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
