BotOnly

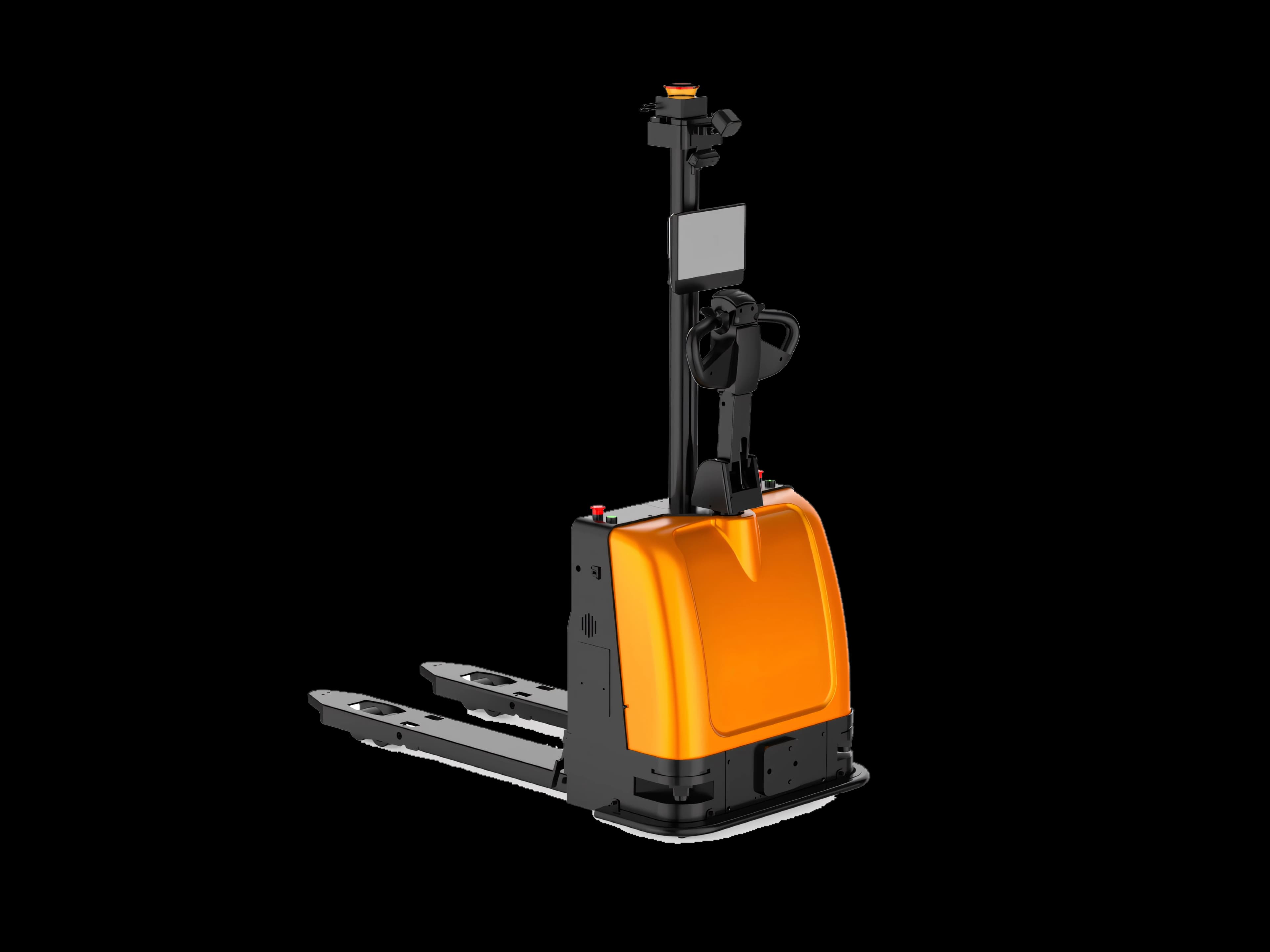

BotOnly FLT-PH-113 Manual/Automatic Pallet-Handling Forklift
A compact manual/automatic pallet-handling forklift for tight material-flow routes. Features laser SLAM navigation, 3D obstacle avoidance and a 1,500 kg rated payload.
- Model
- FLT-PH-113
- Product type
- Manual/Automatic Pallet-Handling Forklift
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,500 kg
- Dimensions (L×W×H)
- 1,640 × 810 × 1,900 mm
- Lift height
- 145 mm
- Vehicle weight
- 360 kg
- Travel speed (loaded/unloaded)
- 4/5 km/h
- Runtime
- 6–8 h
- Navigation
- Laser navigation
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 1,500 kg
- Dimensions (L×W×H)
- 1,640 × 810 × 1,900 mm
- Vehicle weight
- 360 kg
- Lift height
- 145 mm
- Minimum stacking aisle
- 1,690 mm
- Travel speed (loaded/unloaded)
- 4/5 km/h
- Gradeability (loaded/unloaded)
- 3%/5%
- Positioning accuracy
- ± 10 mm
- Battery
- 24 V / 90 Ah
- Charging
- Manual / automatic / battery swap
- Charging time (manual/automatic)
- 4/2 h
- Obstacle detection
- Multi-layer obstacle avoidance
Description & advantages
This vehicle is designed for flexible pallet or carrier movement in mixed production and warehouse environments.
- Dynamic mapping and flexible route updates for changing operating areas
- Manual and automatic operation can be switched for exception handling
- Standardized rapid deployment reduces onsite commissioning work
Key features
Real-time mapping with layered safety
- Laser SLAM navigation with real-time mapping and localization
- 3D obstacle avoidance and safety-loop monitoring
- Compact body for constrained routes
- Manual, automatic and battery-swap charging options
Applications & cases
Where this product fits
- Express logistics
- 3C electronics and precision manufacturing
- Pharmaceutical, textile and food material handling
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
