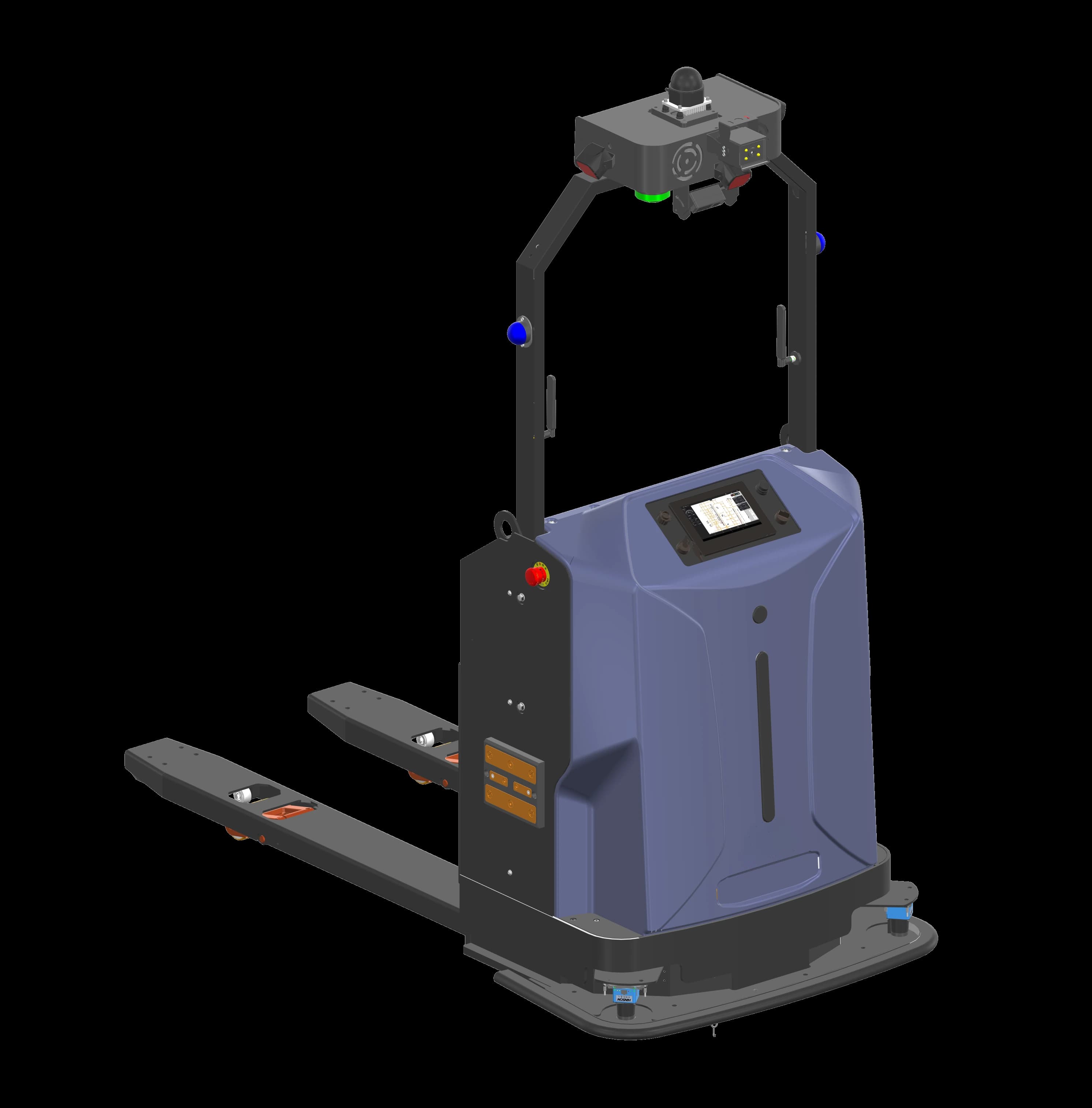

BotOnly FLT-PH-103 Block-Pallet Handling Forklift
BotOnly FLT-PH-103 Block-Pallet Handling Forklift is designed for automated pallet transport, rack handling, and production-line replenishment. Rated payload 1,500 kg, travel speed 0.8 m/s, lift height 180 mm. Navigation is based on 3D Laser SLAM.
- Model
- FLT-PH-103
- Product type
- Block-Pallet Handling Forklift
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 1,500 kg
- Dimensions
- 1,832 × 873 × 2,035 mm
- Lift height
- 180 mm
- Maximum speed
- 0.8 m/s
- Navigation
- 3D Laser SLAM
- Drive mode
- Single steering wheel
- Runtime
- 4~6 h
- Battery
- 24V105Ah
- Turning diameter/radius
- 1,428 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 1,500 kg
- Dimensions
- 1,832 × 873 × 2,035 mm
- Lift height
- 180 mm
- Vehicle weight
- 520 kg
- Navigation
- 3D Laser SLAM
- Drive mode
- Single steering wheel
- Pallet compatibility
- perimeter-base pallet/three-runner pallet
- Operating method
- Forward+reverse+in-place rotation
- Fork dimensions
- 1,220 × 160 × 70 mm
- Turning radius
- 1,428 mm
- Aisle width
- 1,930 mm
- Gradeability
- 3%
- Obstacle crossing
- 5 mm
- Gap crossing
- 10 mm
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Maximum speed
- 0.8 m/s
- Battery
- 24V105Ah
- Standby time
- 8~10 h
- Operating time — unloaded
- 6~8 h
- Operating time — full load
- 4~6 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 3
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- 2
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3 mm
- Operating temperature / humidity
- 10%～90%
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Pallet compatibility and pallet-recognition support
Key features
Laser SLAM navigation with automated charging
- 3D laser SLAM navigation
- Single steering wheel drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet transport
- Rack handling and putaway
- Inbound, outbound, and line-side replenishment
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
