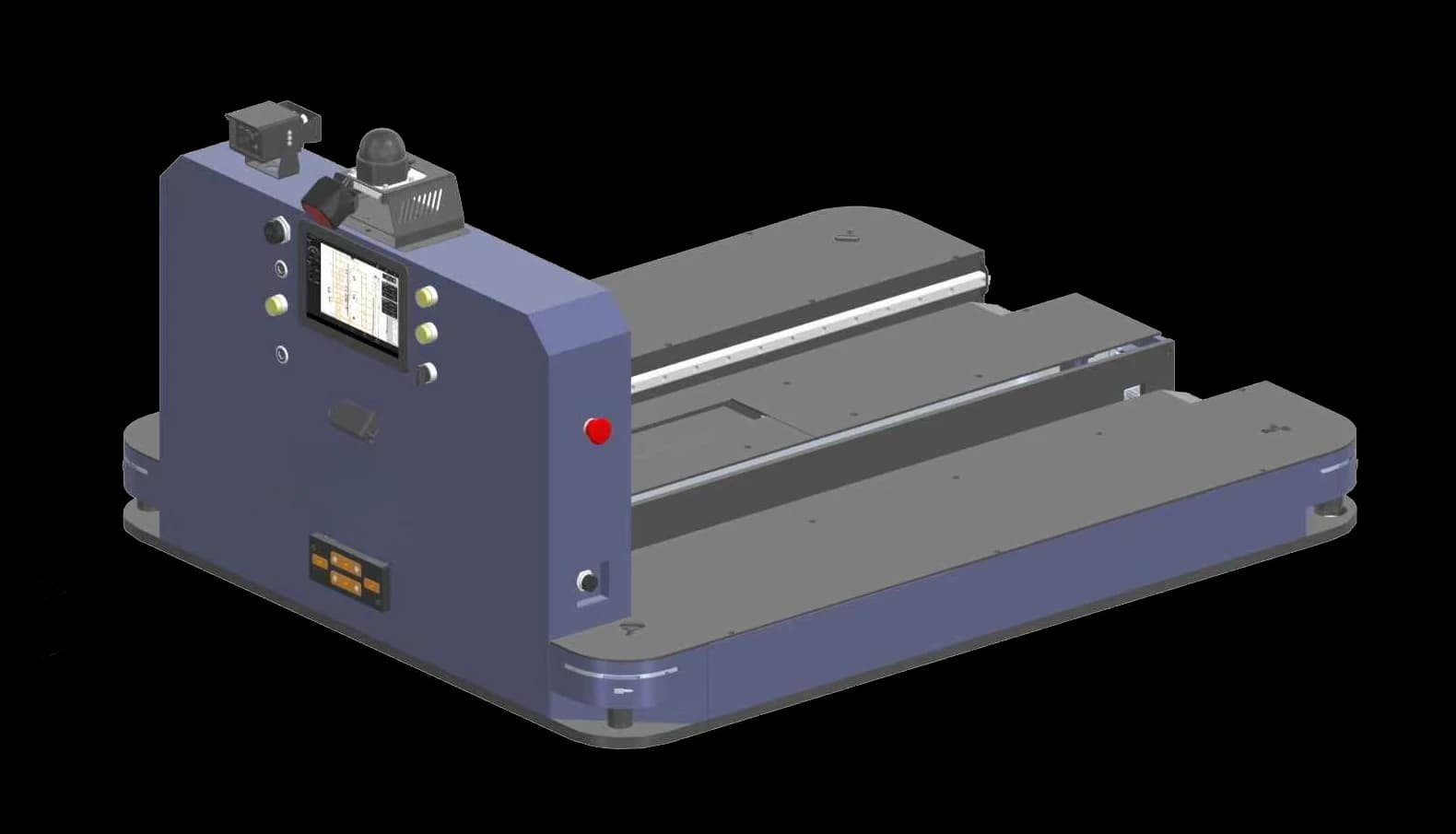

BotOnly FLT-PH-101 Low-Profile Pallet-Handling Forklift
BotOnly FLT-PH-101 Low-Profile Pallet-Handling Forklift is designed for automated pallet transport, rack handling, and production-line replenishment. The current source package lists a verified payload of 1,000 kg, travel speed of 1.1 m/s, lift height of 210 mm. Navigation is based on 3D Laser SLAM.
- Model
- FLT-PH-101
- Product type
- Low-Profile Pallet-Handling Forklift
- Estimated price range
- US$35,000–65,000
At a glance
Key Specifications
- Rated payload
- 1,000 kg
- Dimensions
- 1450 × 1200 × 575（fork length 1120） 1550 × 1200 × 575（fork length 1220）
- Lift height
- 210 mm
- Maximum speed
- 1.1 m/s
- Navigation
- 3D Laser SLAM
- Drive mode
- Dual differential
- Runtime
- 4~6 h
- Battery
- 48V40Ah
- Turning diameter/radius
- 1,800 mm
Technical data
Detailed Specifications
- Rated payload
- 1,000 kg
- Dimensions
- 1450 × 1200 × 575（fork length 1120） 1550 × 1200 × 575（fork length 1220）
- Lift height
- 210 mm
- Vehicle weight
- 500 kg
- Navigation
- 3D Laser SLAM
- Drive mode
- Dual differential
- Pallet compatibility
- perimeter-base pallet/three-runner pallet
- Operating method
- Forward+reverse+in-place rotation
- Fork dimensions
- 1120 × 160 × 60（Customizable） 1220 × 160 × 60（Customizable）
- Aisle width
- 1,800 mm
- Turning diameter
- 1,800 mm
- Gradeability
- 5%
- Obstacle crossing
- 5 mm
- Gap crossing
- 30 mm
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Maximum speed
- 1.1 m/s
- Battery
- 48V40Ah
- Standby time
- 8~10 h
- Operating time — unloaded
- 6~8 h
- Operating time — full load
- 4~6 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 1
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- 4
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3 mm
- Operating temperature / humidity
- 10%～90%
Description & advantages
The source combines the compact access of an under-rack mobile robot with direct pallet lifting, allowing pallet handling in tighter spaces than a conventional forklift.
- Compatible with multiple pallet formats
- WMS/ERP integration and fleet dispatch support
- Designed for high-density storage and constrained handling areas
Key features
Laser SLAM navigation with automated charging
- 3D laser SLAM navigation
- Dual differential drive architecture
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet transport
- Rack handling and putaway
- Inbound, outbound, and line-side replenishment
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
