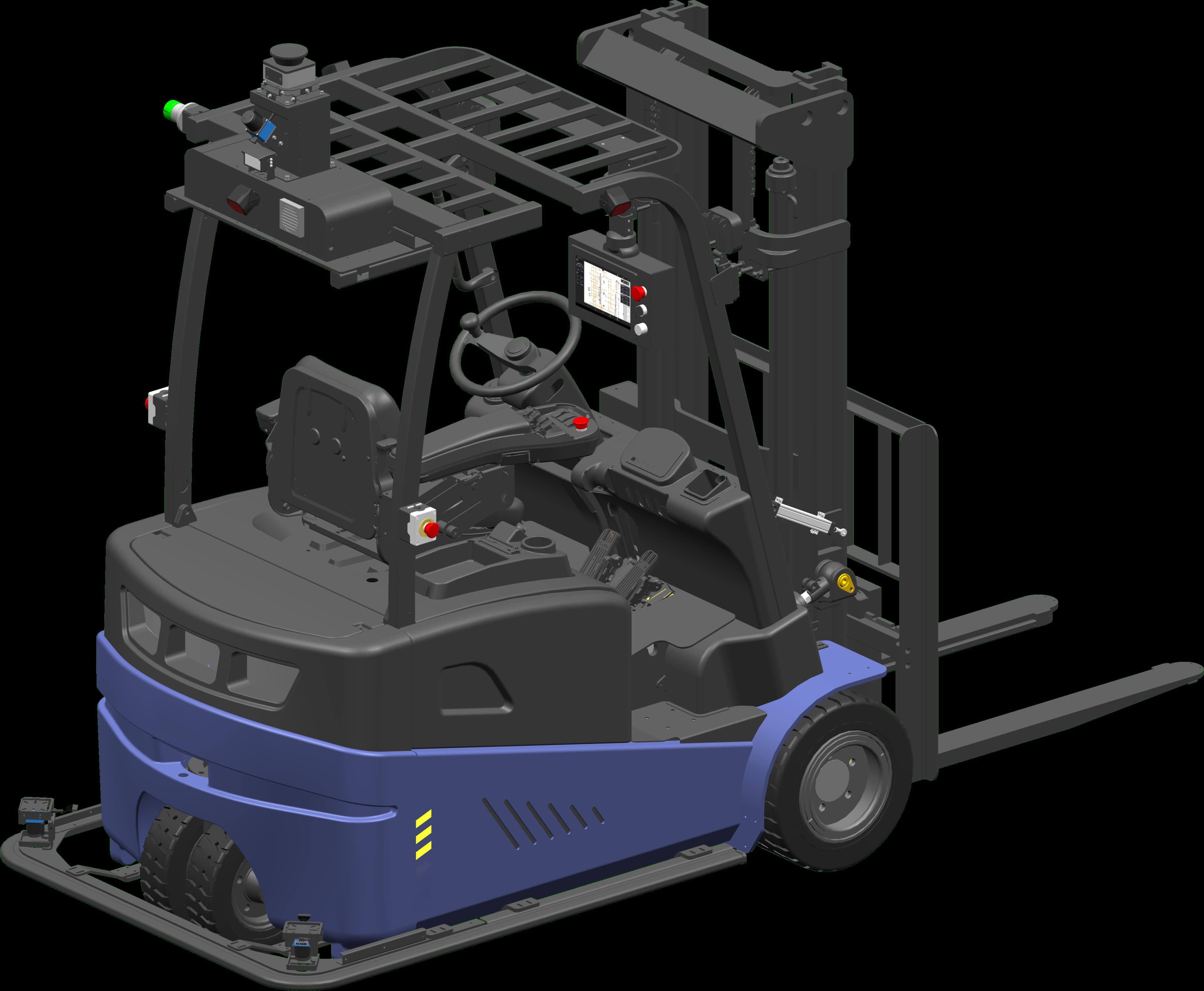

BotOnly FLT-CB-105 Outdoor Autonomous Counterbalance Forklift
BotOnly FLT-CB-105 Outdoor Autonomous Counterbalance Forklift is designed for automated pallet transport, rack handling, and production-line replenishment. Rated payload 2,000 kg, travel speed 2 m/s, lift height 3,000 ± 5 mm. Navigation is based on 2D laser SLAM/3D Laser SLAM.
- Model
- FLT-CB-105
- Product type
- Outdoor Autonomous Counterbalance Forklift
At a glance
Key Specifications
Manufacturer-rated specifications
- Rated payload
- 2,000 kg
- Dimensions
- 3,210 × 1,275 × 2,360 mm
- Lift height
- 3,000 ± 5 mm
- Maximum speed
- 2 m/s
- Navigation
- 2D laser SLAM/3D Laser SLAM
- Drive mode
- Differential drive+steering-wheel steering
- Runtime
- 5~6 h
- Battery
- 48V450Ah
- Turning diameter/radius
- 1,865 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
Manufacturer-rated specifications
- Rated payload
- 2,000 kg
- Dimensions
- 3,210 × 1,275 × 2,360 mm
- Lift height
- 3,000 ± 5 mm
- Vehicle weight
- 3210 ± 5%
- Navigation
- 2D laser SLAM/3D Laser SLAM
- Drive mode
- Differential drive+steering-wheel steering
- Pallet compatibility
- three-runner pallet/perimeter-base pallet/rack
- Operating method
- Automatic/Manual
- Fork dimensions
- 1,070 × 100 × 40 mm
- Aisle width
- 3,912 mm
- Turning radius
- 1,865 mm
- Turning diameter
- 3,710 mm
- Gradeability
- 13%
- Obstacle crossing
- 50 mm
- Gap crossing
- 200 mm
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Maximum speed
- 2 m/s
- Battery
- 48V450Ah
- Standby time
- 24 h
- Operating time — unloaded
- 8~9 h
- Operating time — full load
- 5~6 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 4
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- √
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3
- Operating temperature / humidity
- 10%～90%
Description & advantages
This product is designed to operate as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- WMS/WCS/ERP integration for coordinated material-flow tasks
- Fleet dispatch and traffic coordination for multi-vehicle operation
Key features
Laser SLAM navigation with automated charging
- 2D laser SLAM / 3D laser SLAM navigation
- Differential drive with steering-wheel control
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet transport
- Rack handling and putaway
- Inbound, outbound, and line-side replenishment
Configuration note
Pricing depends on the selected configuration. Your quote will itemize the machine, options, freight, installation and commissioning separately.
