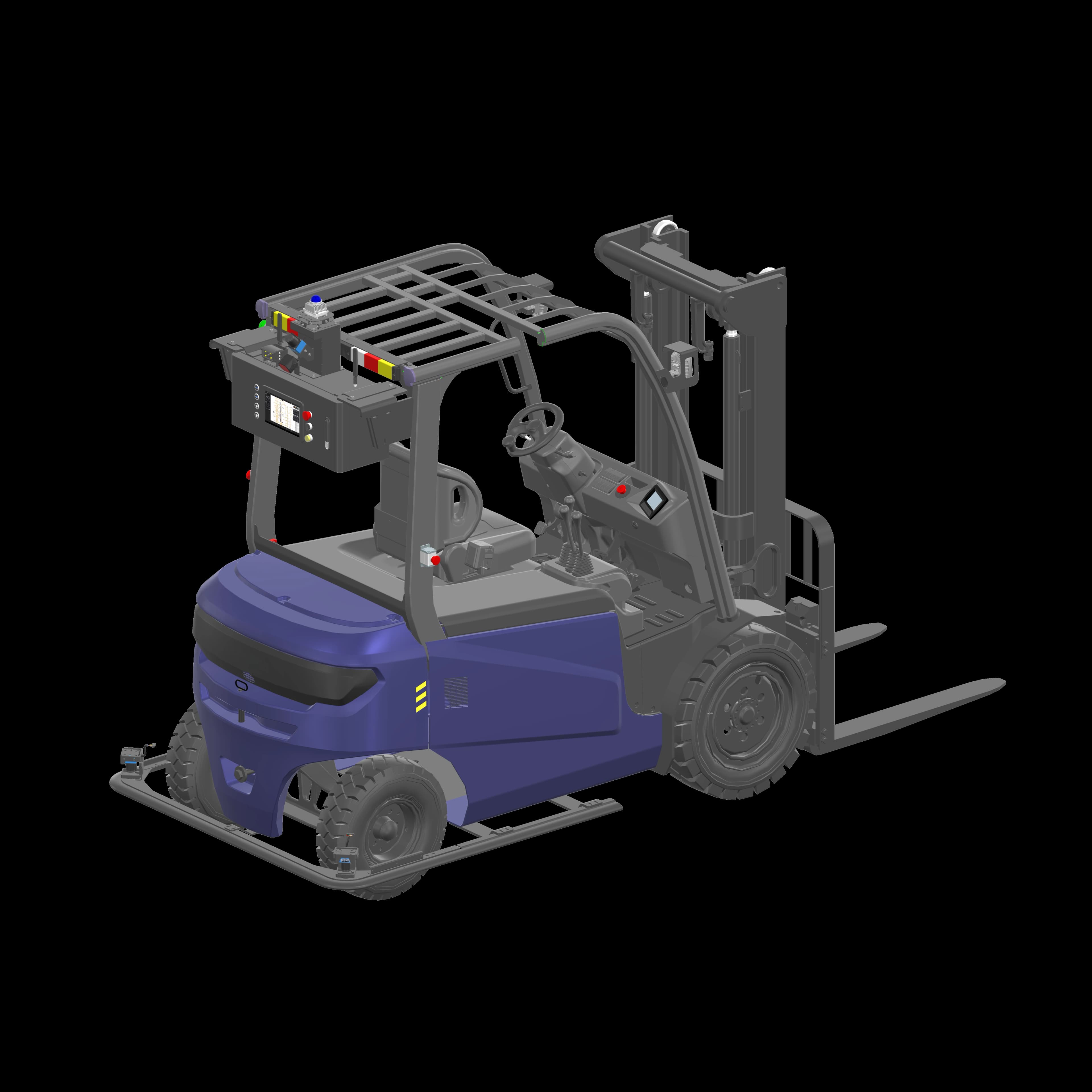

BotOnly FLT-CB-104 Indoor Autonomous Counterbalance Forklift
BotOnly FLT-CB-104 Indoor Autonomous Counterbalance Forklift is designed for automated pallet transport, rack handling, and production-line replenishment. The current source package lists a verified payload of 3,500 kg, travel speed of 2 m/s, lift height of 3,000 ± 5 mm. Navigation is based on 3D Laser SLAM.
- Model
- FLT-CB-104
- Product type
- Indoor Autonomous Counterbalance Forklift
- Estimated price range
- US$60,000–120,000
At a glance
Key Specifications
- Rated payload
- 3,500 kg
- Dimensions
- 3,870 × 1,350 × 2,500 mm
- Lift height
- 3,000 ± 5 mm
- Maximum speed
- 2 m/s
- Navigation
- 3D Laser SLAM
- Drive mode
- Differential drive+steering-wheel steering
- Runtime
- 6~8 h
- Battery
- 80V/400AH
- Turning diameter/radius
- 2,630 mm
- Positioning accuracy
- ± 10 mm
Technical data
Detailed Specifications
- Rated payload
- 3,500 kg
- Dimensions
- 3,870 × 1,350 × 2,500 mm
- Lift height
- 3,000 ± 5 mm
- Vehicle weight
- 5440 ± 5%
- Navigation
- 3D Laser SLAM
- Drive mode
- Differential drive+steering-wheel steering
- Pallet compatibility
- three-runner pallet/perimeter-base pallet
- Operating method
- Automatic/Manual
- Fork dimensions
- 1,000 × 122 × 45 mm
- Aisle width
- 4,950 mm
- Turning radius
- 2,630 mm
- Turning diameter
- 5,260 mm
- Gradeability
- 16%
- Obstacle crossing
- 50 mm
- Gap crossing
- 200 mm
- Positioning accuracy
- ± 10 mm
- Angular accuracy
- ± 1°
- Maximum speed
- 2 m/s
- Battery
- 80V/400AH
- Standby time
- 24 h
- Operating time — unloaded
- 8~10 h
- Operating time — full load
- 6~8 h
- Charging time
- 2 h
- Charging method
- Manual / automatic
- Laser scanner count
- 3
- Emergency stop
- √
- Audible / visual warning
- √
- Safety sensing
- √
- Communication
- 2.4 GHz / 5.8 GHz dual-band Wi-Fi
- Floor flatness
- ± 3
- Operating temperature / humidity
- 10%～90%
Description & advantages
The supplier source describes this product as part of an automated material-flow system rather than a standalone vehicle, with route planning and equipment handoff coordinated at site level.
- Source-backed workflow integration beyond the published numeric specifications
Key features
Laser SLAM navigation with automated charging
- 3D laser SLAM navigation
- Differential drive with steering-wheel control
- Manual / automatic charging support
- Safety sensing, emergency stop, and visual/audible status indication
Applications & cases
Where this product fits
- Pallet transport
- Rack handling and putaway
- Inbound, outbound, and line-side replenishment
Configuration note
The displayed range is an estimate. Final quotation depends on top module, navigation and safety configuration, fleet/software integration, quantity, freight, installation and commissioning.
